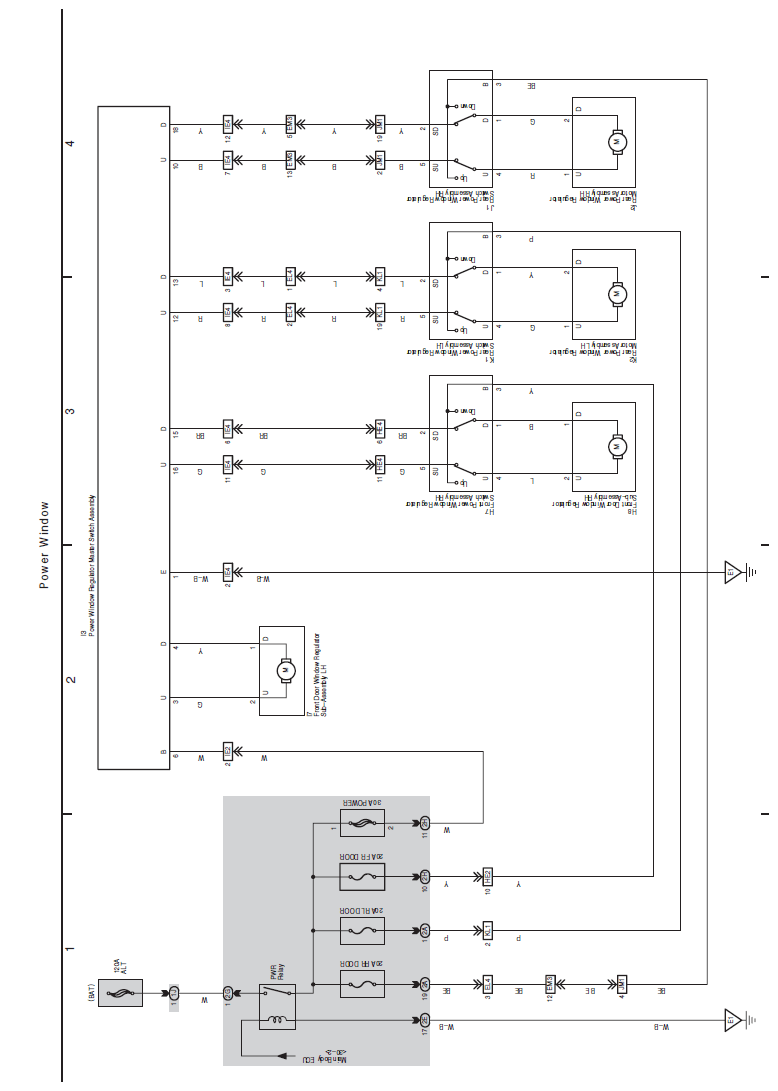

Home >> Toyota >> 2009 >> Corolla S, 1.8 L, Standard >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Power Window (Except TMC Made)
