OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Outlet (Except TMC Made), Shift Lock (Except TMC Made)
Power Outlet (Except TMC Made), Shift Lock (Except TMC Made)

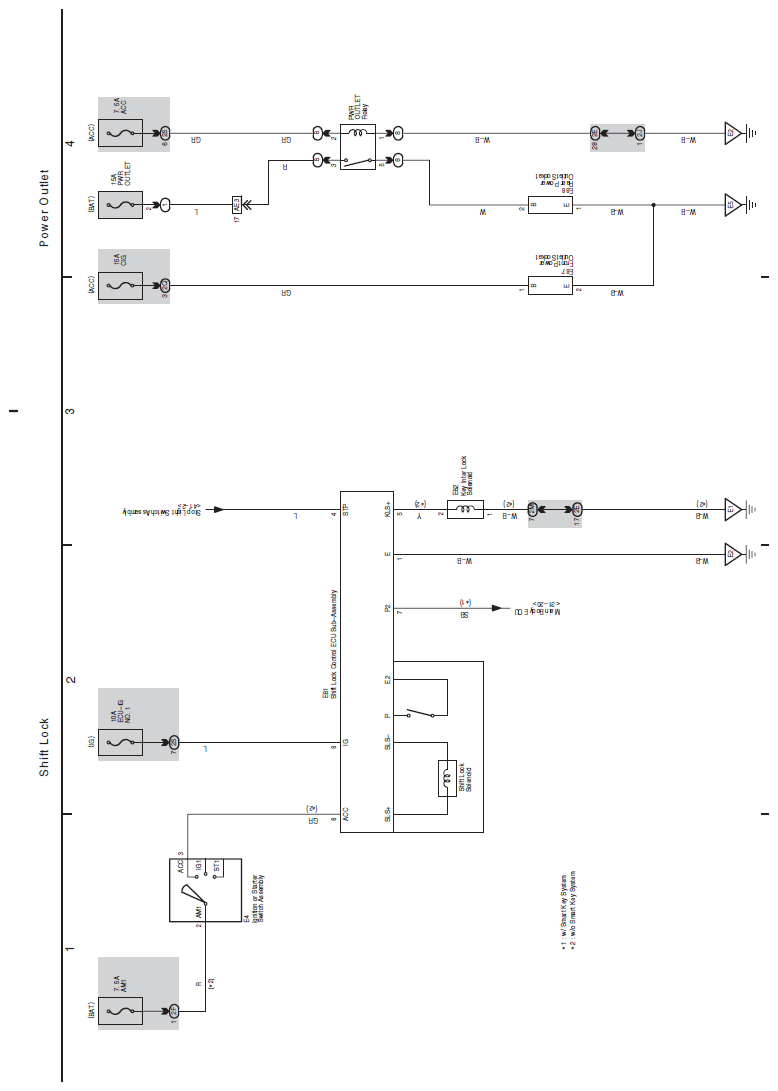

Fig 1: Shift Lock And Power Outlet - Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
