Front Wiper and Washer (Except TMC Made)

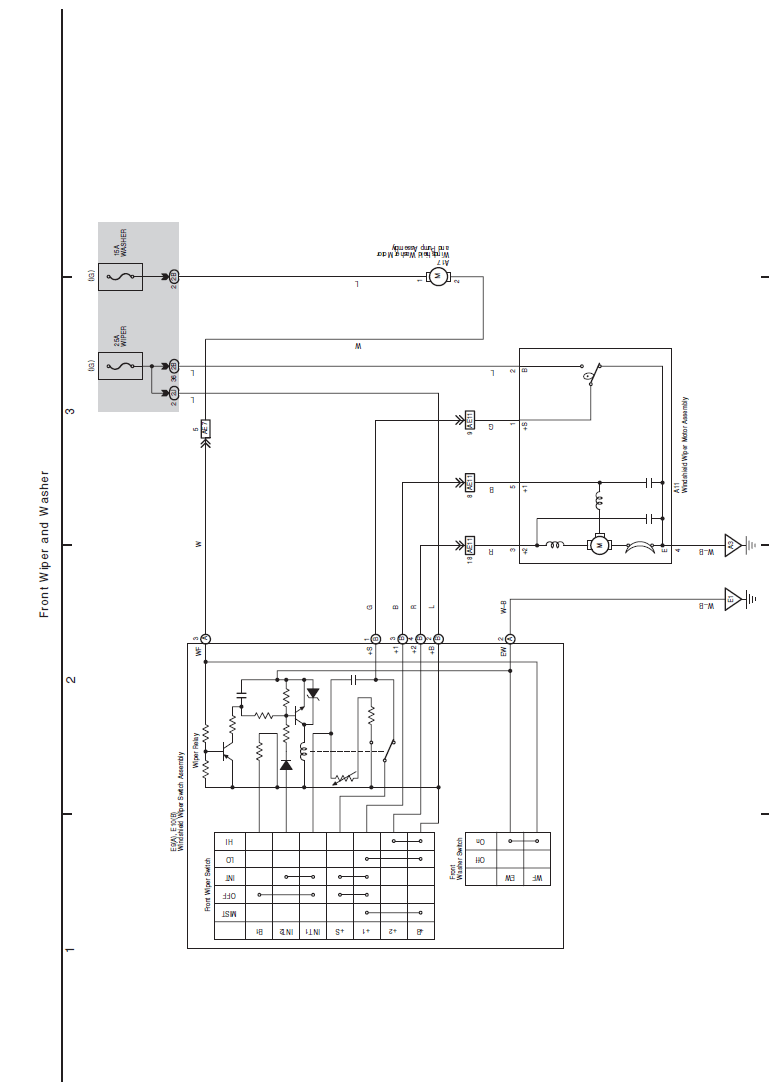

Fig 1: Front Wiper And Washer - Electrical Wiring Diagram

G07605184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
