Front Fog Light (Except TMC Made), Headlight (Except TMC Made)

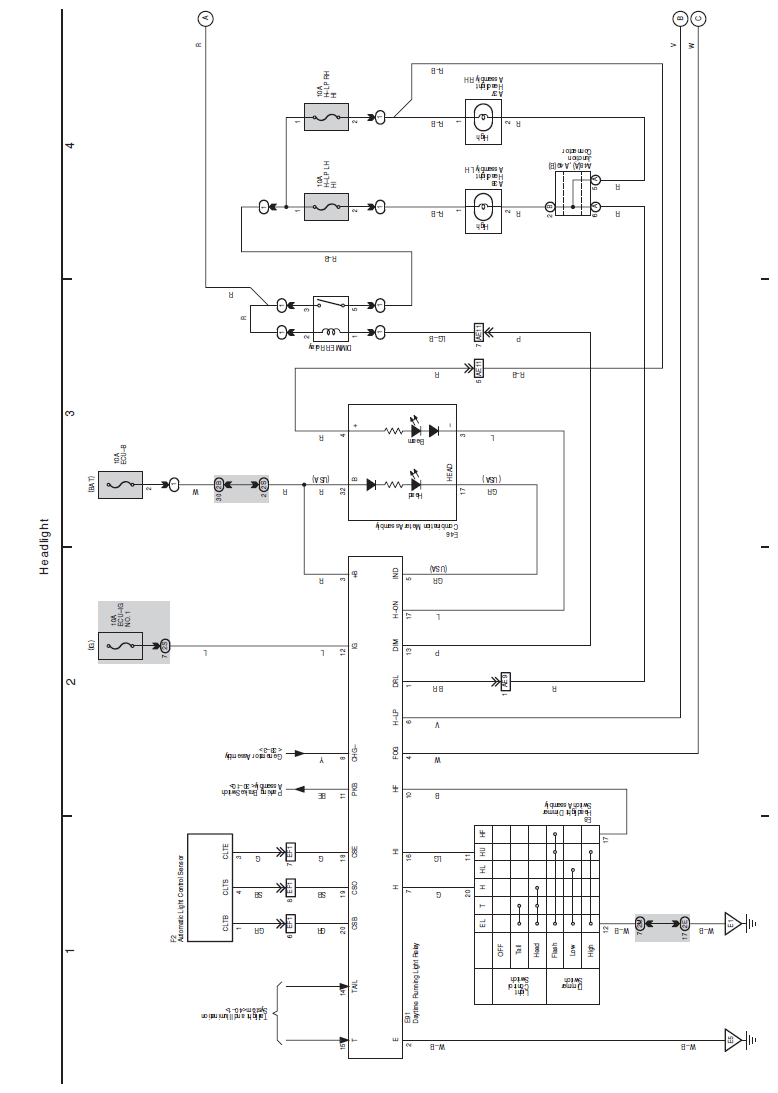

Fig 1: Headlight - Electrical Wiring Diagram
G07605167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

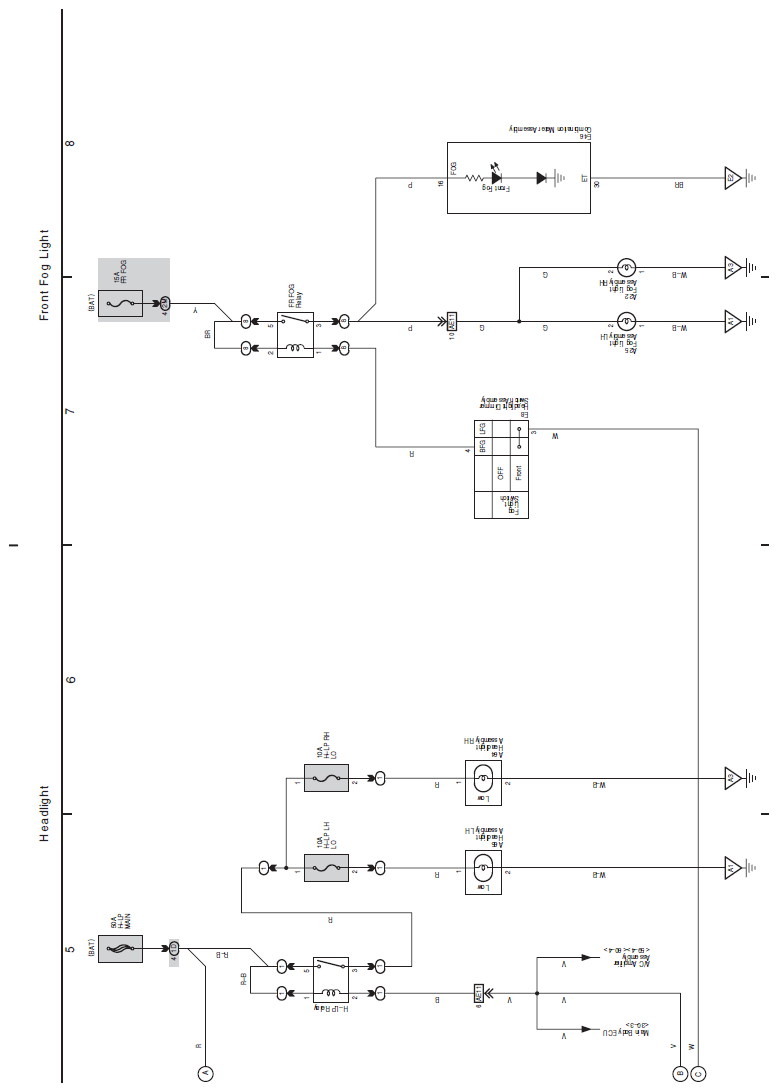

Fig 2: Front Fog Light - Electrical Wiring Diagram
G07605168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
