Data Link Connector 3 (TMC Made), Engine Immobiliser System (w/o Smart Key System) (TMC Made)

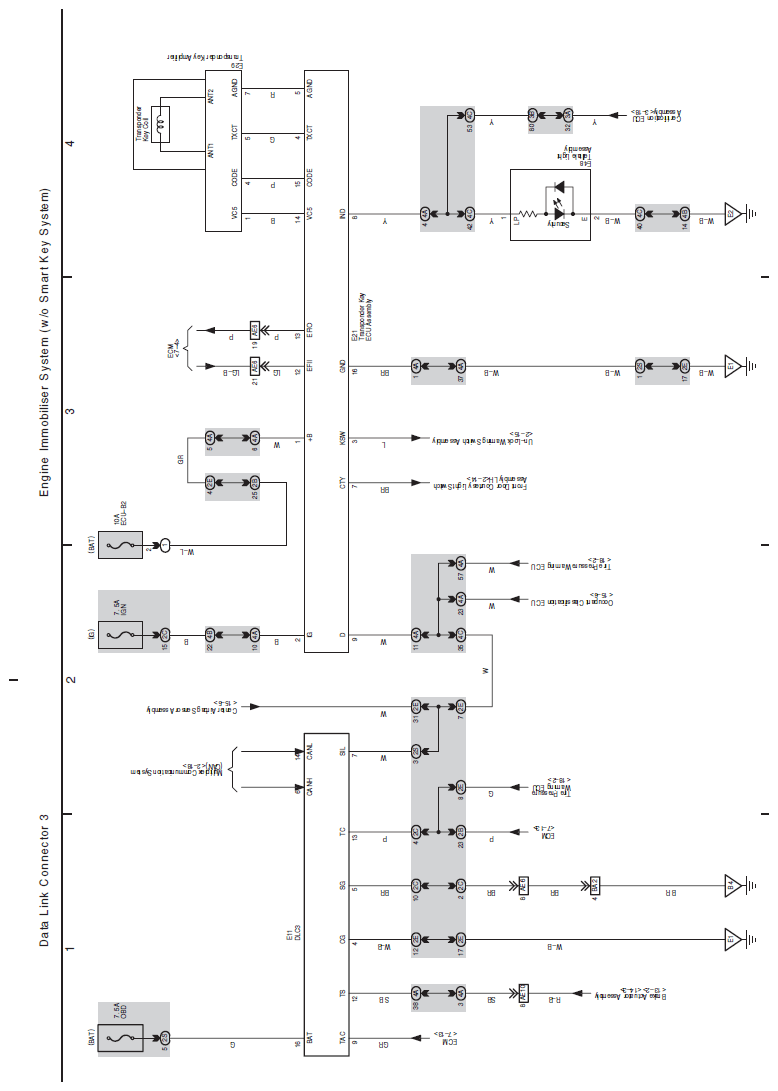

Fig 1: Engine Immobiliser System (w/o Smart Key System) - Electrical Wiring Diagram
G07605112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
