Cruise Control (TMC Made), Electronically Controlled Transmission and A/T Indicator (TMC Made), Engine Control (TMC Made)

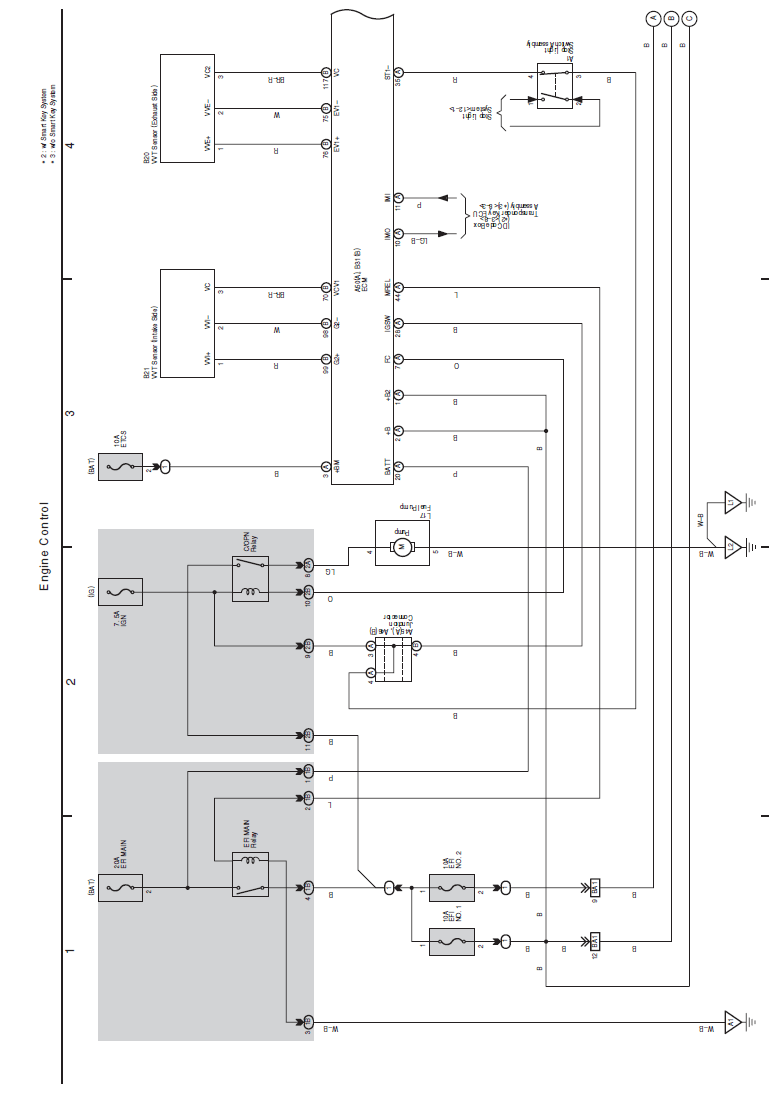

Fig 1: Engine Control - Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

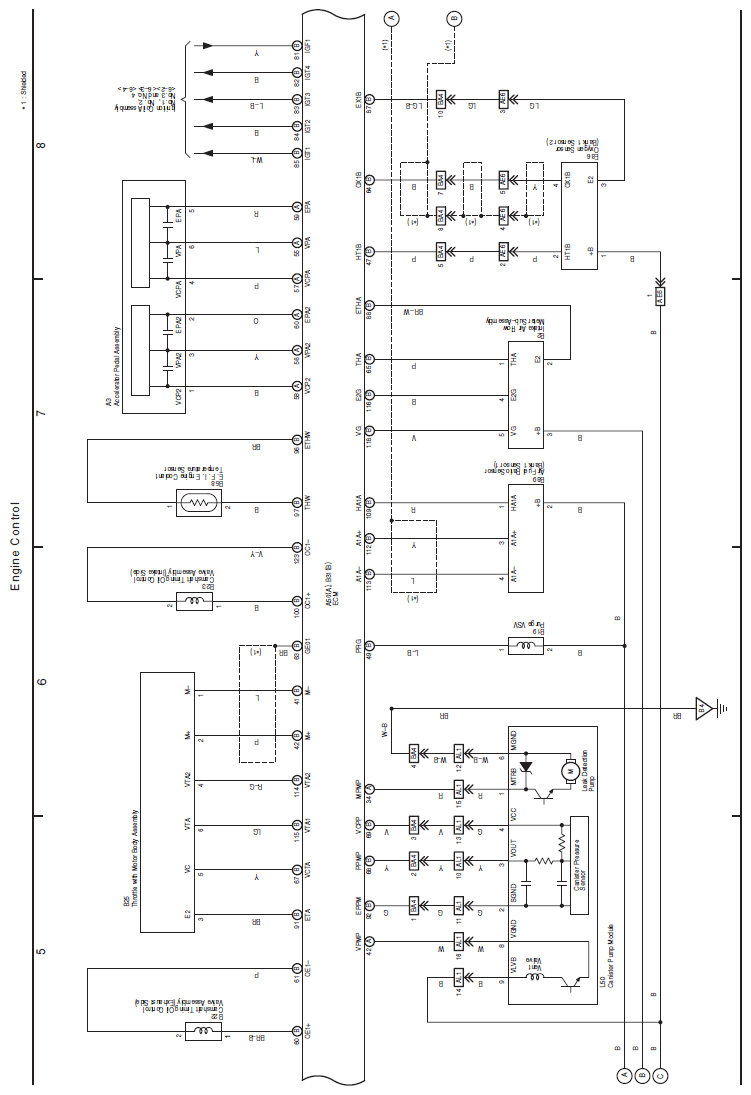

Fig 2: Engine Control - Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

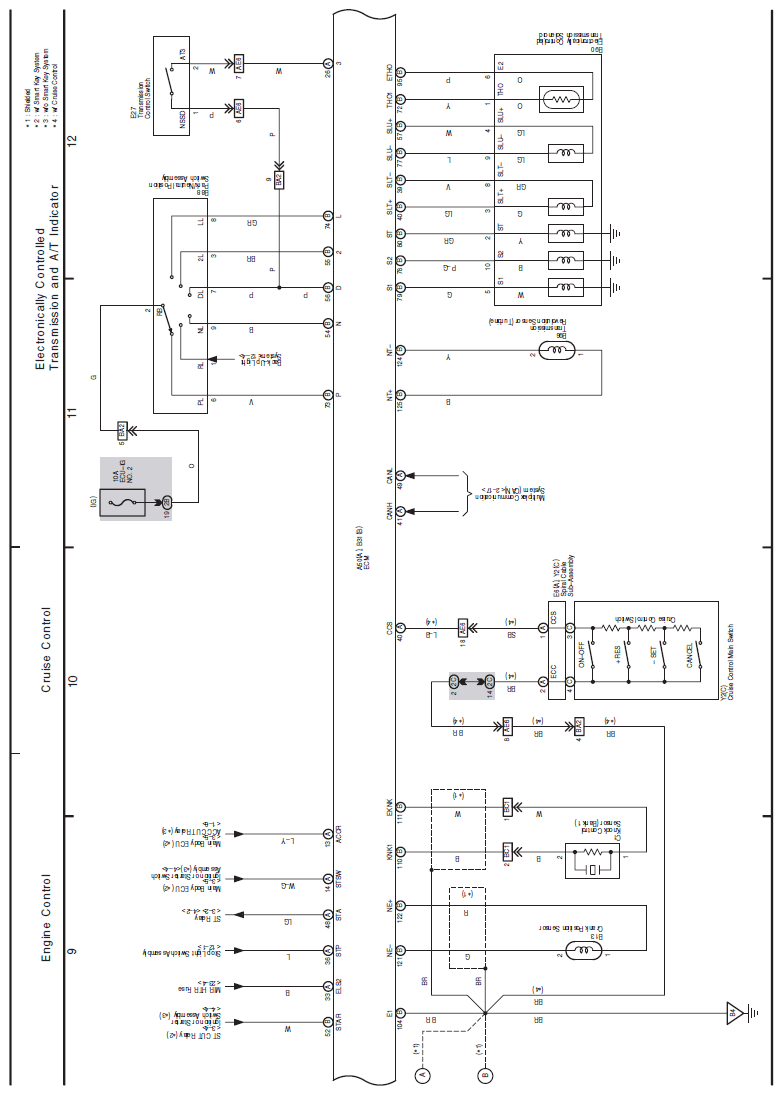

Fig 3: Engine Control And Cruise Control - Electrical Wiring Diagram

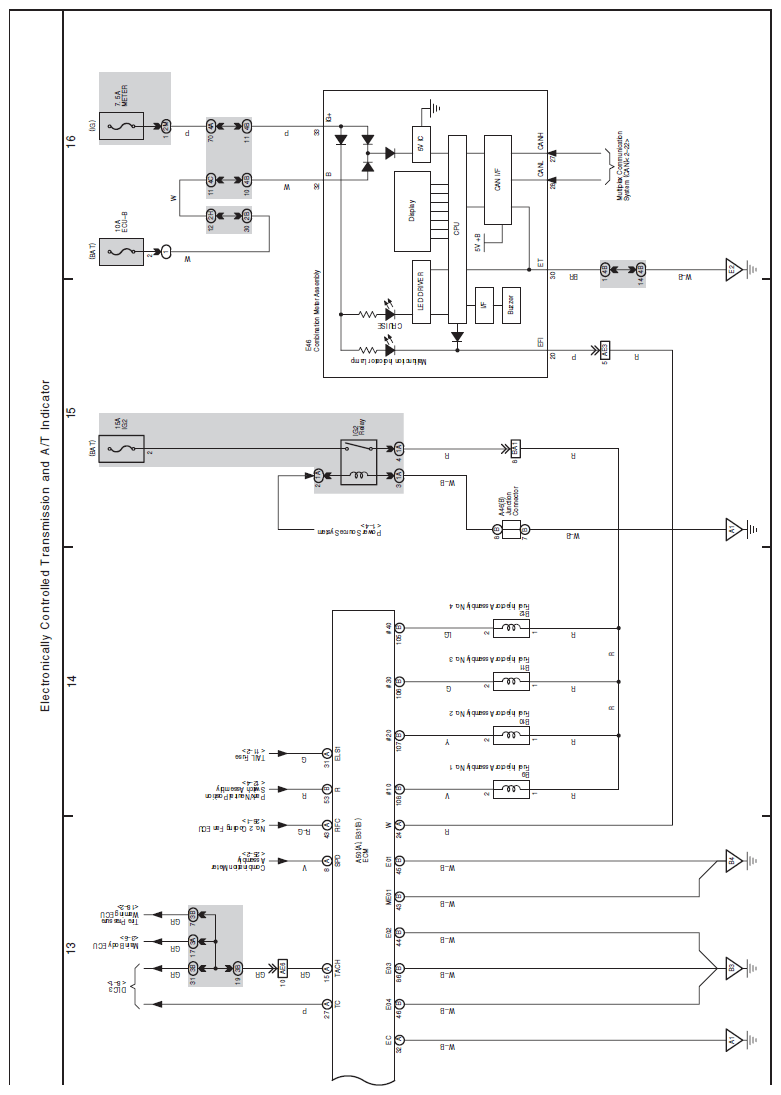

Fig 4: Electronically Controlled Transmission And A/T Indicator - Electrical Wiring Diagram
