Automatic Glare-Resistant EC Mirror with Compass (Except TMC Made), Sliding Roof (Except TMC Made)

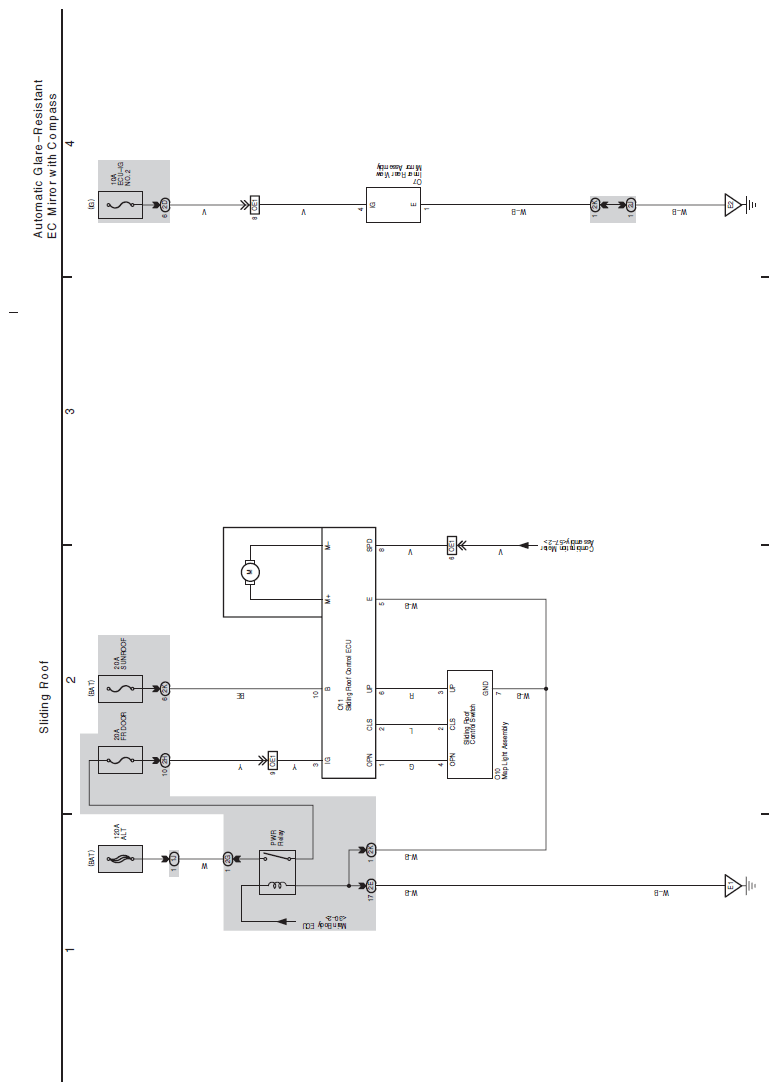

Fig 1: Sliding Roof And Automatic Glare-Resistant EC Mirror With Compass - Electrical Wiring Diagram
G07605182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
