ABS (w/ VSC) (TMC Made), TRAC (TMC Made), VSC (TMC Made)

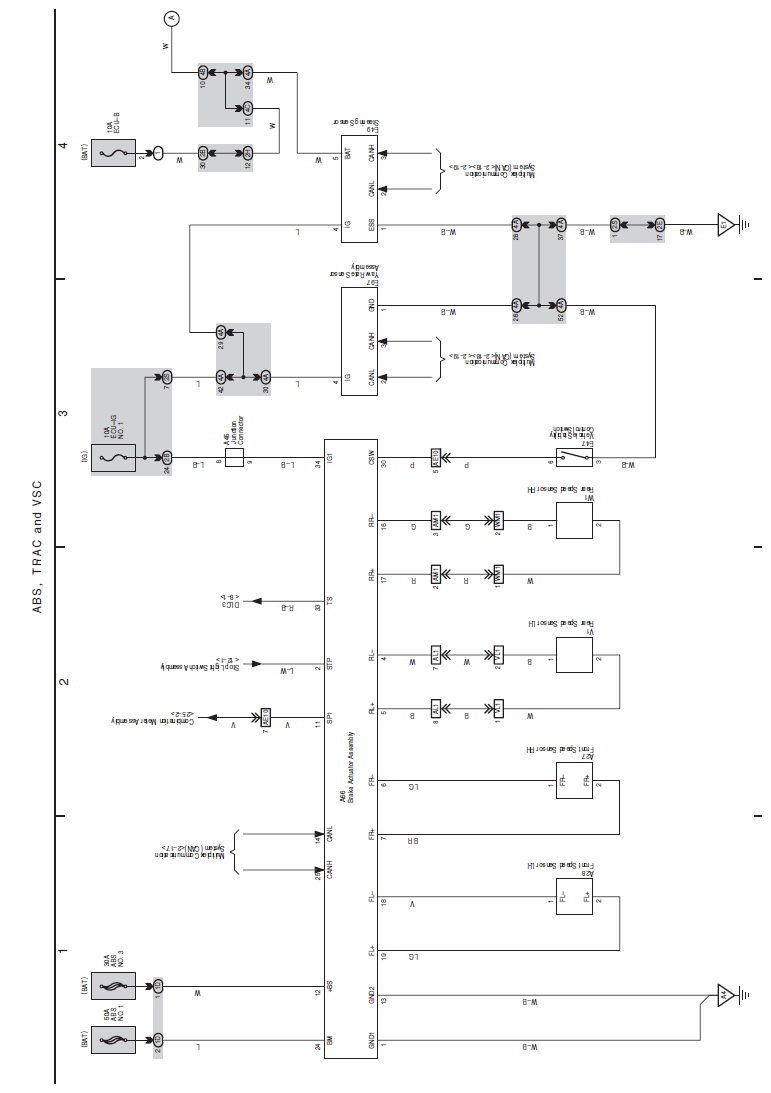

Fig 1: ABS, TRAC And VSC - Electrical Wiring Diagram (1 Of 2)
G07605120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

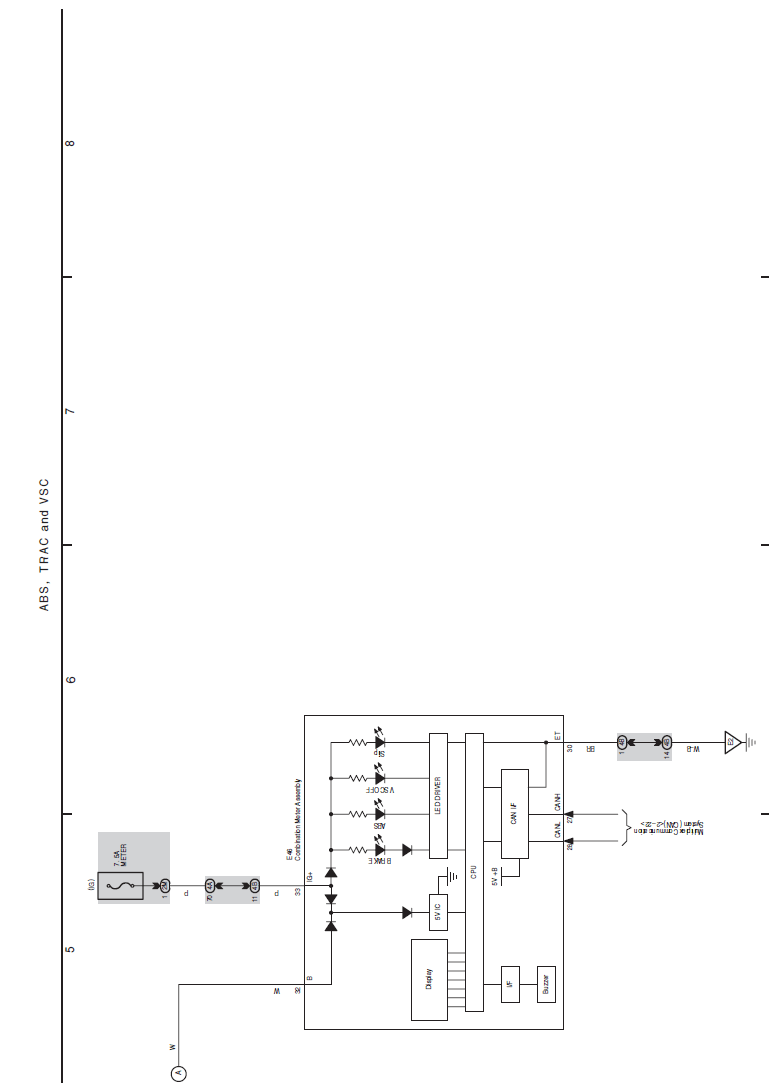

Fig 2: ABS, TRAC And VSC - Electrical Wiring Diagram (2 Of 2)
G07605121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
