ABS (w/ VSC) (Except TMC Made), TRAC (Except TMC Made), VSC (Except TMC Made)

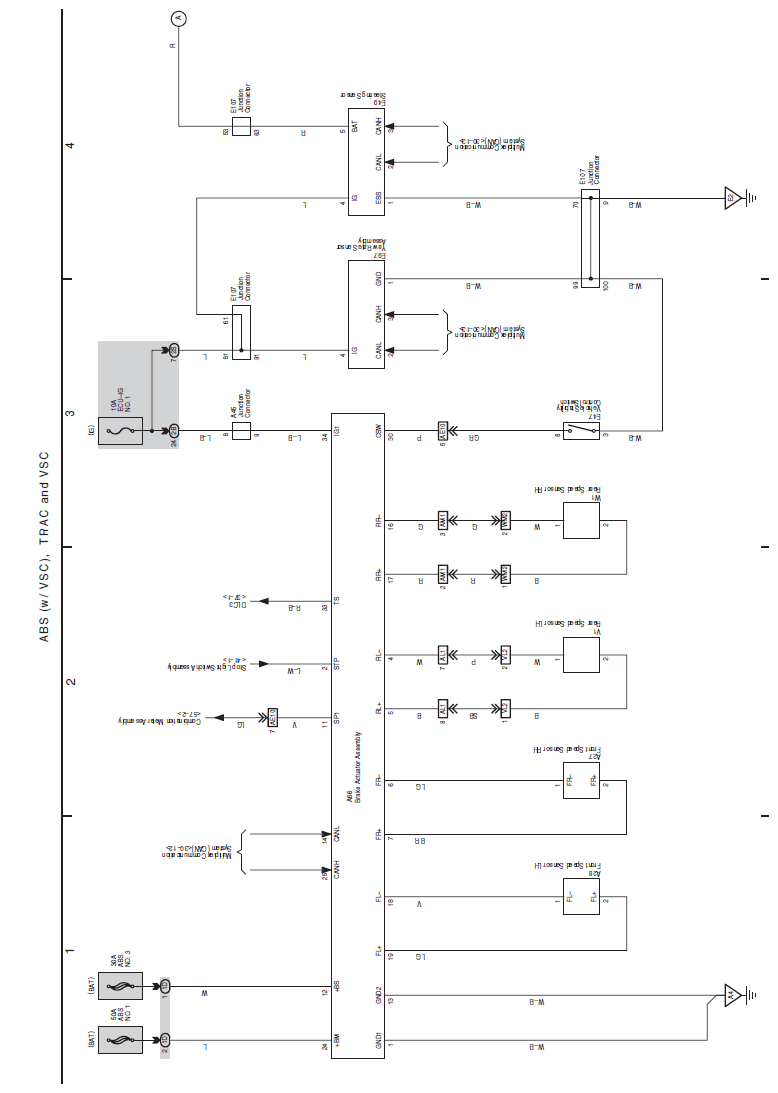

Fig 1: ABS (w/ VSC), TRAC And VSC - Electrical Wiring Diagram (1 Of 2)
G07605174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

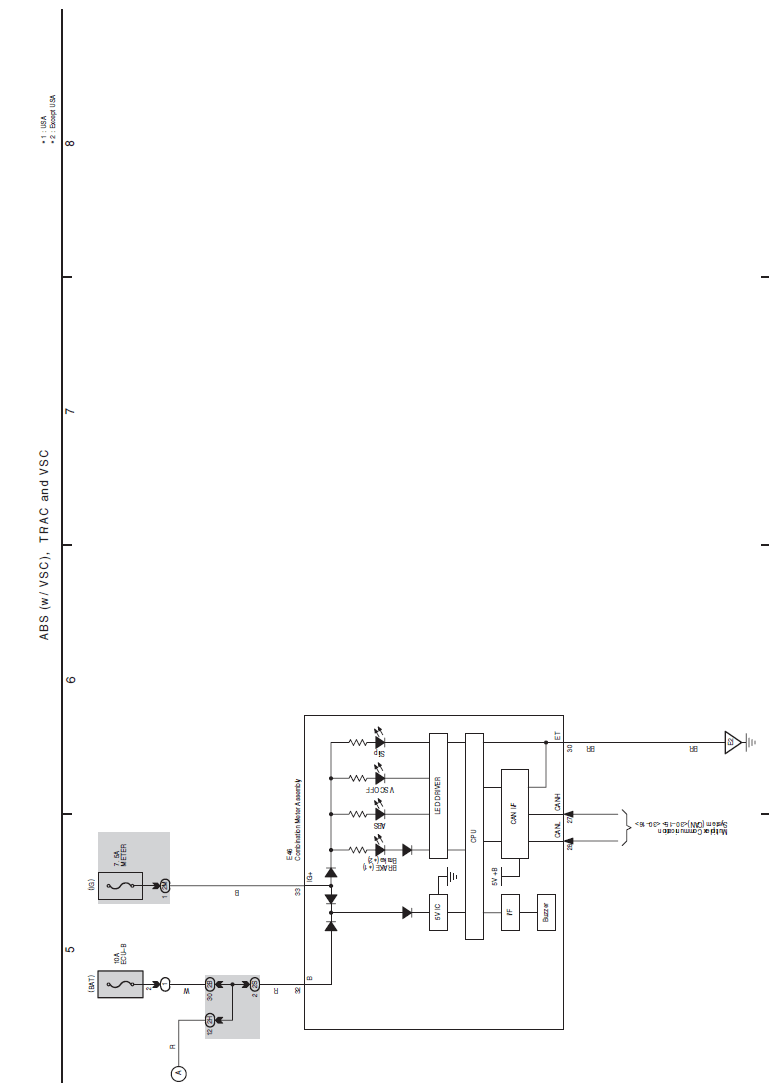

Fig 2: ABS (w/ VSC), TRAC And VSC - Electrical Wiring Diagram (2 Of 2)
G07605175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
