Rear Brake Shoe, Wheel Cylinder & Brake Drum: Components

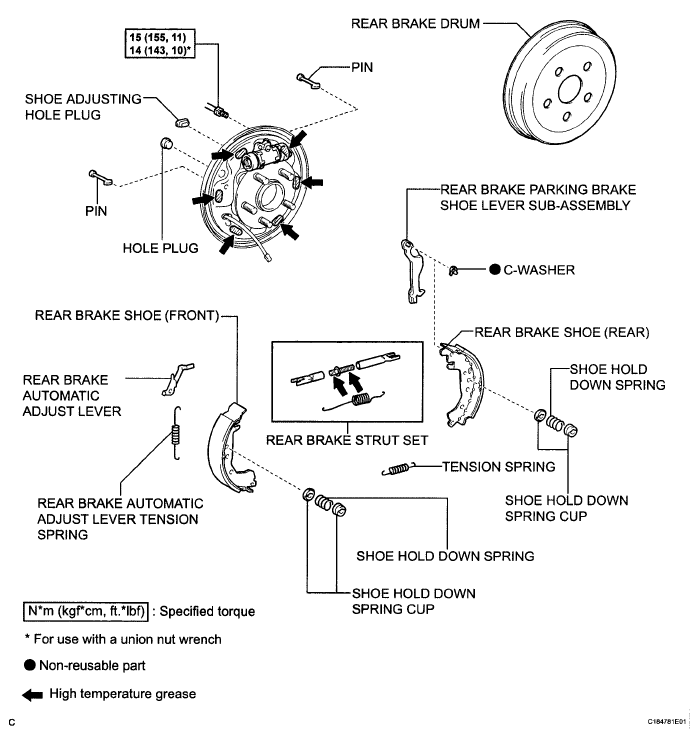

Fig 1: Rear Brake (For Drum Type) Replacement Components With Torque Specifications (1 Of 2)
G06010118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

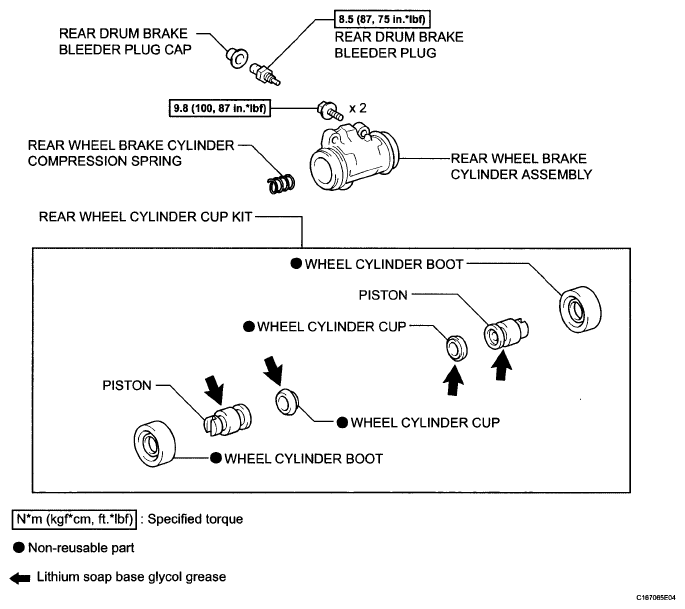

Fig 2: Rear Brake (For Drum Type) Replacement Components With Torque Specifications (2 Of 2)
G06010119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
