Rear Brake Pad, Brake Caliper & Brake Rotor: Components

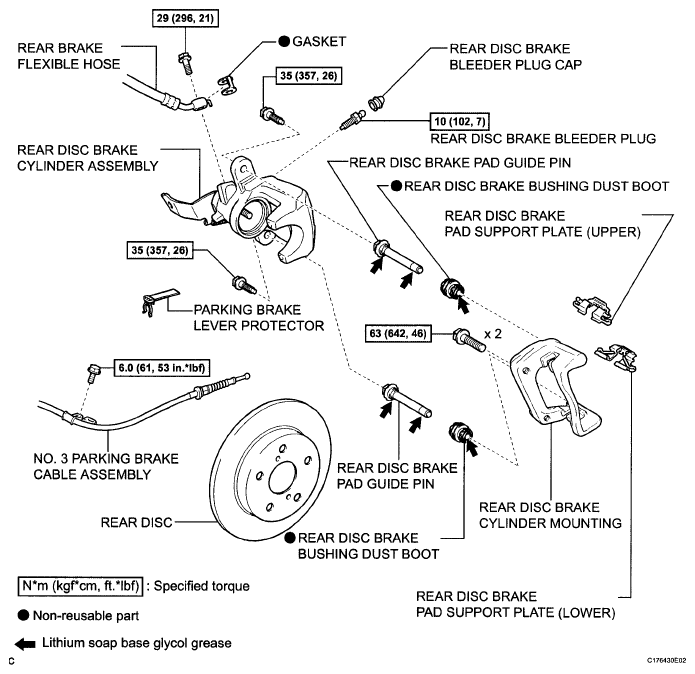

Fig 1: Rear Brake With Torque Specification - For Disc Type (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Brake With Torque Specification - For Disc Type (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

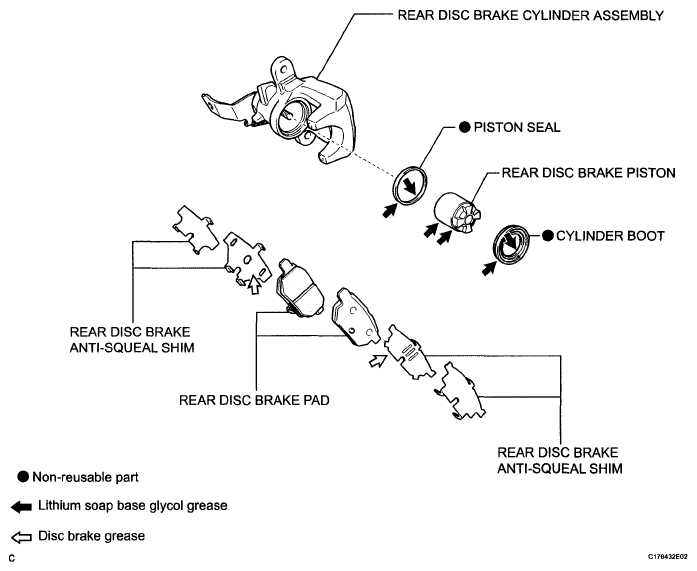

Fig 3: Rear Brake With Torque Specification - For Disc Type (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
