Rear Brake Flexible Hose: Components

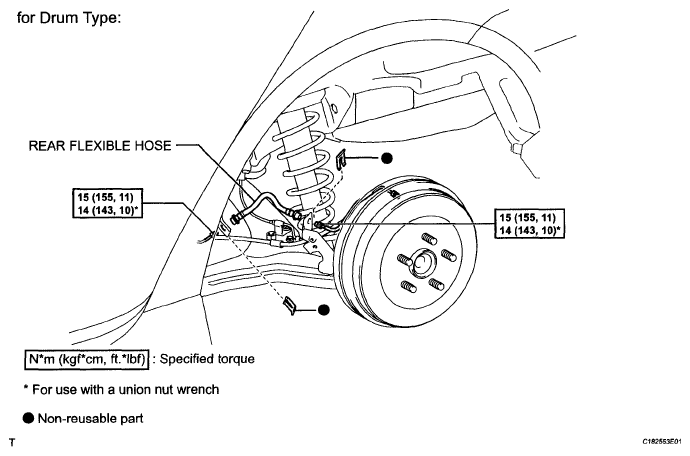

Fig 1: Rear Brake Flexible Hose Replacement Components With Torque Specifications (1 Of 2)
G06010151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

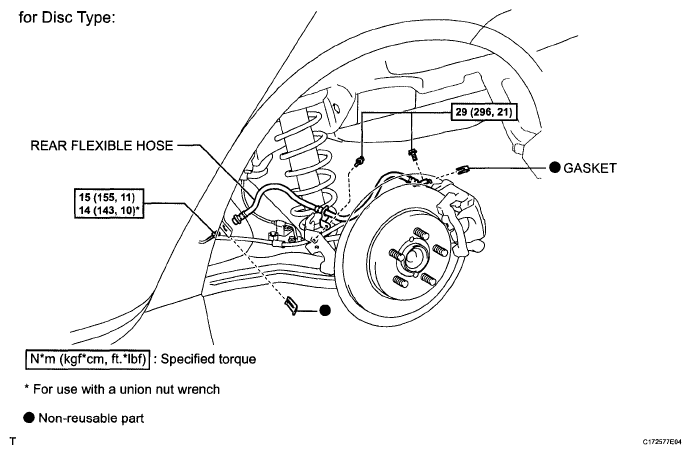

Fig 2: Rear Brake Flexible Hose Replacement Components With Torque Specifications (2 Of 2)
G06010152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
