Id Code Box: Removal

REMOVE AIR CONDITIONING UNIT
HINT:

Refer to the removal procedure for the air conditioning unit (See REMOVAL ).
REMOVE IMMOBILIZER CODE ECU (w/ Smart Key System)
1. Disconnect the connector.

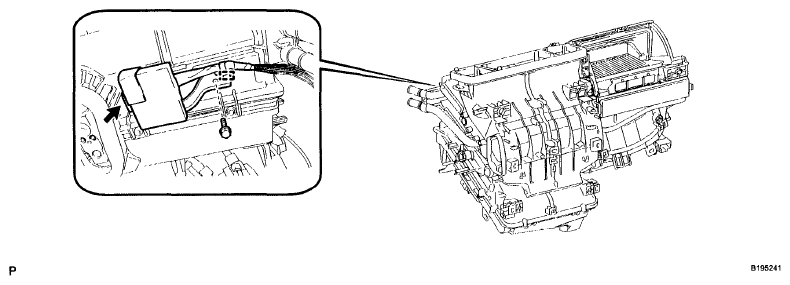

  Fig 1: Identifying Immobilizer Code ECU Connector With Clamp And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp.
3. Remove the bolt and the immobilizer code ECU.
REMOVE TRANSPONDER KEY ECU (w/o Smart Key System)
1. Disconnect the connector.

  Fig 2: Identifying Immobilizer Code ECU Connector With Clamp And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp.
3. Remove the bolt and the transponder key ECU.
