Speed Signal Circuit: Wiring Diagram

  1. except TMC Made 2ZR-FE

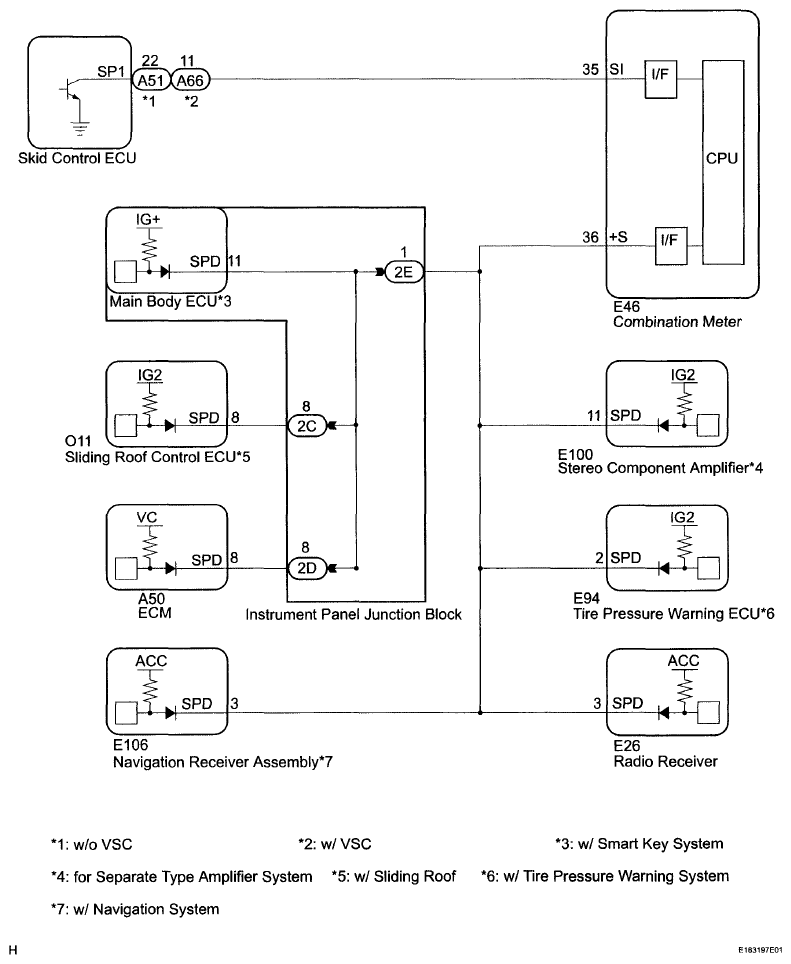

    Fig 1: Navigation Receiver Assembly - Wiring Diagram (1 Of 3)
    G06014510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMC Made 2ZR-FE

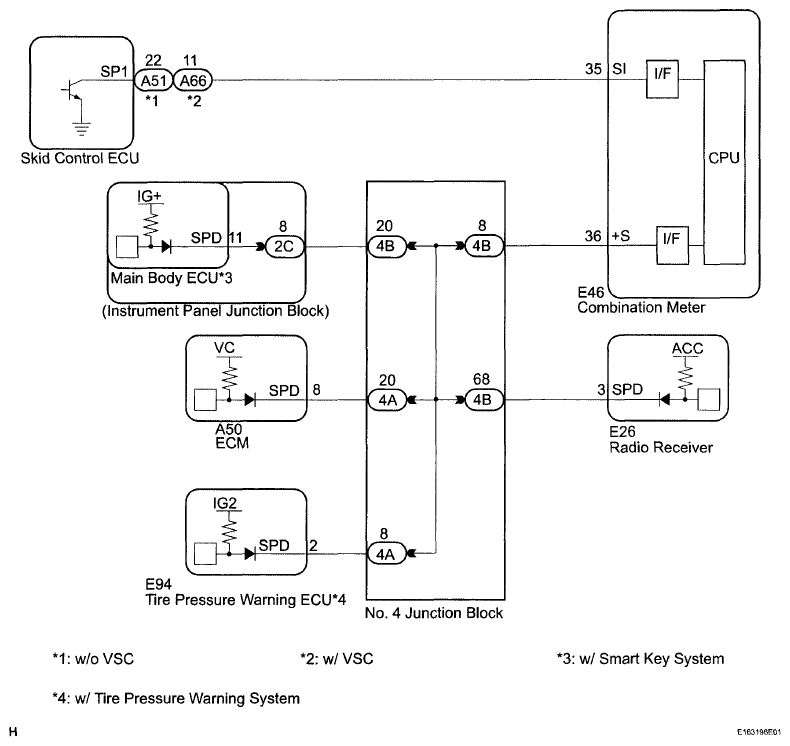

    Fig 2: Navigation Receiver Assembly - Wiring Diagram (2 Of 3)
    G06014511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. except TMC Made 2AZ-FE

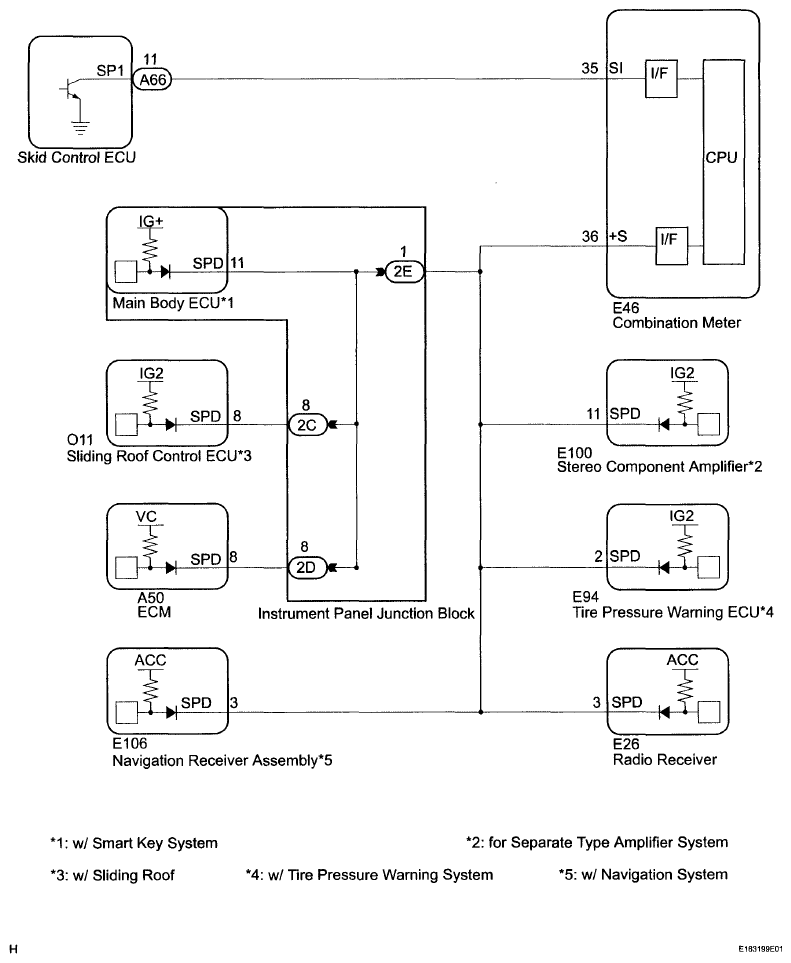

    Fig 3: Navigation Receiver Assembly - Wiring Diagram (3 Of 3)
    G06014512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
