Parts Location

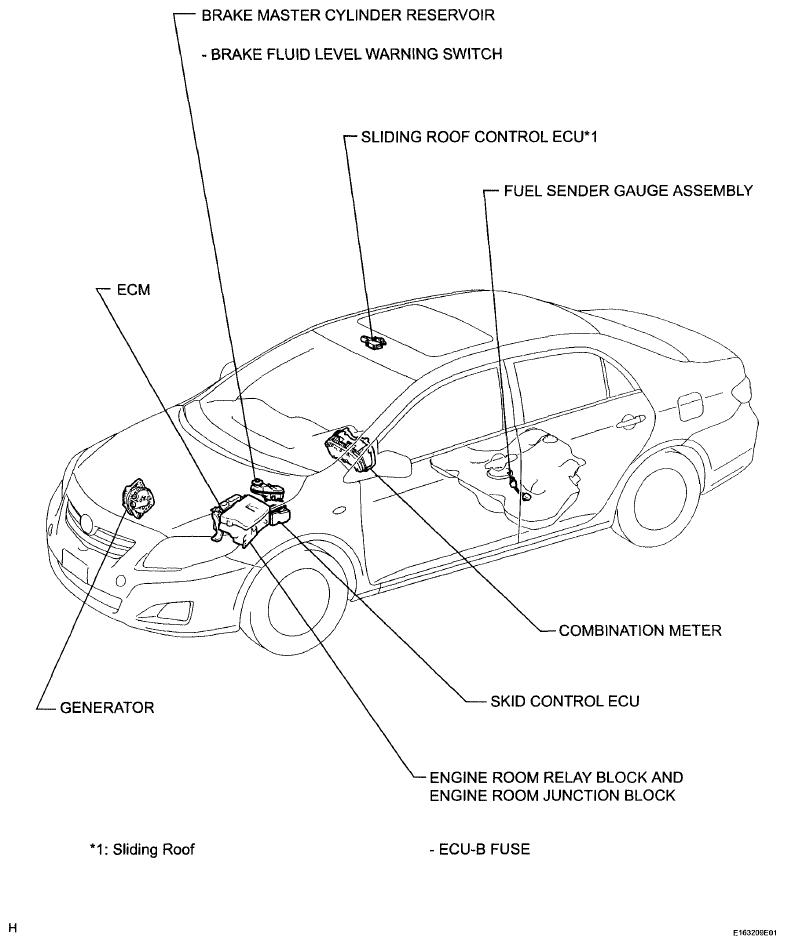

Fig 1: Identifying Meter And Gauge System Parts Location (1 Of 3)
G06014484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

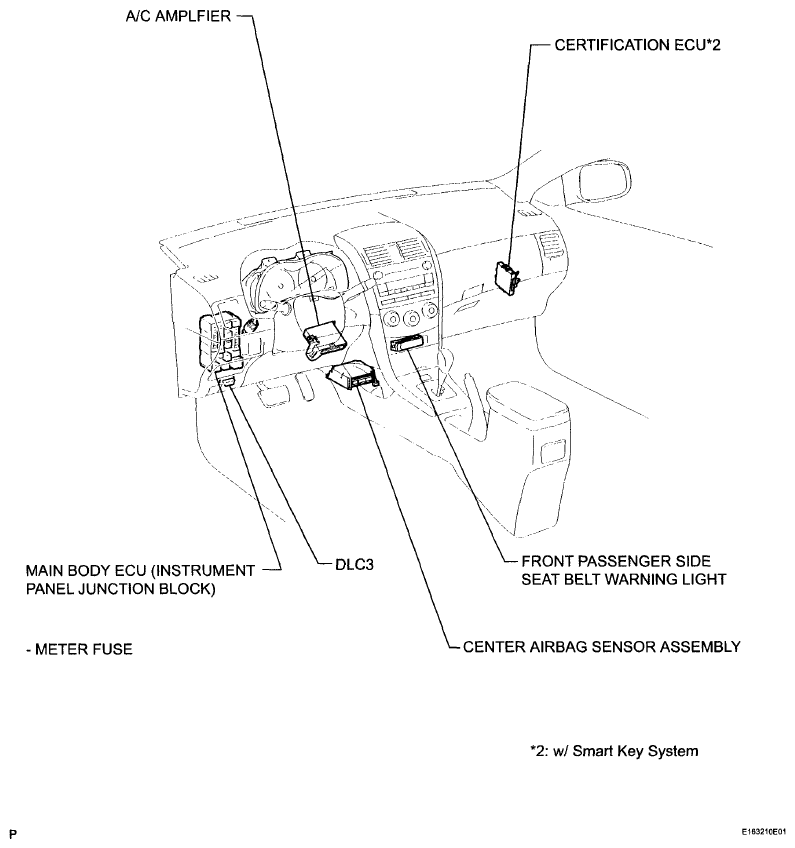

Fig 2: Identifying Meter And Gauge System Parts Location (2 Of 3)
G06014485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Meter And Gauge System Parts Location (3 Of 3)
G06014486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
