Fuel Receiver Gauge Malfunction: Wiring Diagram

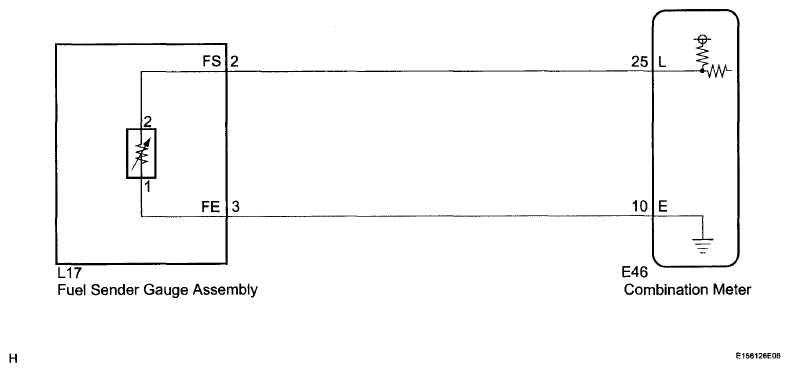

Fig 1: Fuel Sender Gauge Assembly And Combination Meter - Wiring Diagram

G06014506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
