Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

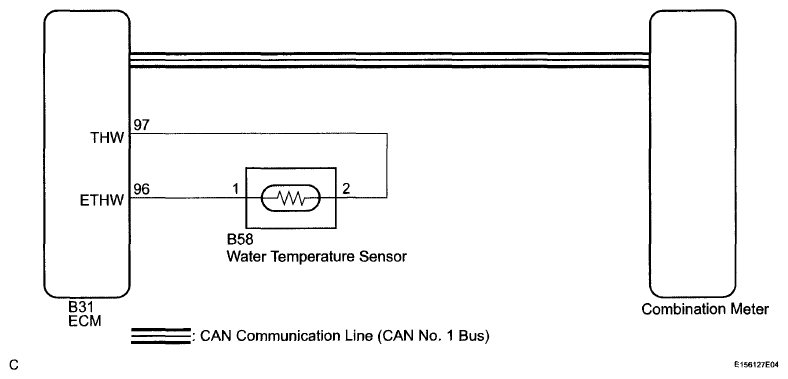

Fig 1: Combination Meter And ECM - Wiring Diagram

G06014509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
