Parts Location

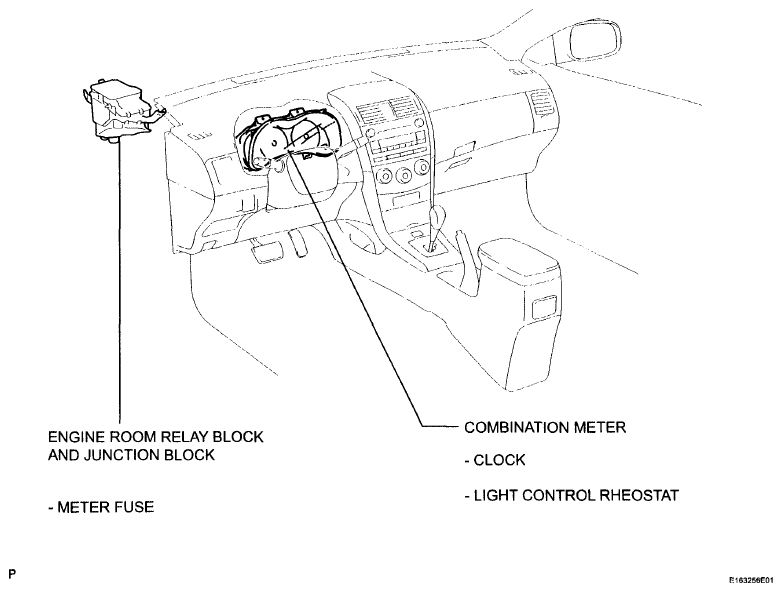

Fig 1: Identifying Clock System Parts Location
G06014532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
