Rear Shock Absorber: Installation

INSTALL REAR SHOCK ABSORBER WITH COIL SPRING
1. Install the rear shock absorber with coil spring to the rear axle carrier assembly and insert the 2 bolts from the rear of the vehicle.
2. Slowly jack up the vehicle using a wooden block and install the rear shock absorber with coil spring (upper side) to the vehicle.

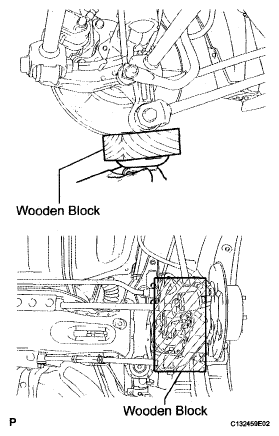

  Fig 1: Lifting Vehicle With Wooden Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the 3 nuts to the upper side of the rear shock absorber with coil spring.

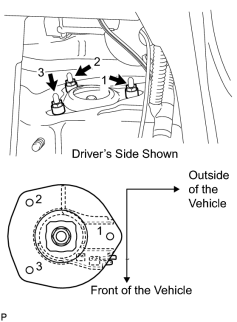

  Fig 2: Locating Rear Shock Absorber Nuts Upper Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Fully tighten the 3 nuts in order from 1 to 3.
  Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

  Fig 3: Installing Rear Shock Upper Plate And Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the 2 nuts and 2 bolts to the lower side of the rear shock absorber with coil spring.
  Torque: 180 N*m (1,840 kgf*cm, 133 ft.*lbf)

  NOTE: When installing the nuts, keep the bolts from rotating.

  Fig 4: Locating Rear Shock Absorber With Nuts And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Fully tighten the lock nut.
  Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

  Fig 5: Locating Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR SPEED SENSOR
1. Install the rear brake flexible hose and rear speed sensor wire harness with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf) (bolt A) 19 N*m (194 kgf*cm, 14 ft.*lbf) (bolt B)

  Fig 6: Identifying Rear Brake Flexible Hose And Rear Speed Sensor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR STABILIZER LINK ASSEMBLY LH
1. Install the rear stabilizer link assembly LH to the rear shock absorber with the nut.
  Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

  Fig 7: Locating Rear Stabilizer Link Assembly With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.
INSTALL REAR SUSPENSION SUPPORT NO. 1 COVER
1. Engage the 4 claws and install the rear suspension support No. 1 cover.

  Fig 8: Locating Rear Suspension Support No. 1 Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSTALL REAR SEAT BACK ASSEMBLY (for Fixed Type) (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Type) (See INSTALLATION )
INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Type)
INSTALL REAR SEAT HEADREST ASSEMBLY (for Fixed Type)
INSTALL REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) (See INSTALLATION )
INSTALL REAR SIDE SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) (See INSTALLATION )
INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) (See INSTALLATION )
INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type) (See INSTALLATION )
INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)
INSTALL REAR SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)
INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type) (See INSTALLATION )
INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Reclining Seat Type) (See INSTALLATION )
INSTALL REAR SEAT BACK COVER (for Reclining Seat Type)
INSTALL REAR SEAT CUSHION ASSEMBLY (for Reclining Seat Type) (See INSTALLATION )
INSTALL REAR SEAT HEADREST ASSEMBLY (for Reclining Seat Type)
CHECK ABS SPEED SENSOR SIGNAL
ABS: See DIAGNOSIS SYSTEM

VSC (for BOSCH): TEST MODE PROCEDURE

VSC (for ADVICS): TEST MODE PROCEDURE
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(See ADJUSTMENT )
