Rear No. 2 Suspension Arm: Components

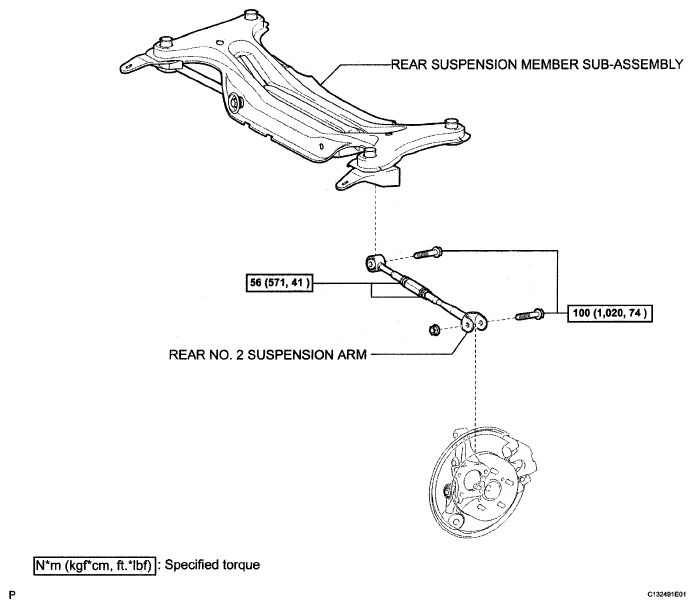

Fig 1: Rear No. 2 Suspension Arm Replacement Components With Torque Specifications

G04977788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
