Front Suspension Lower No. 1 Arm (2GR-FE): Installation

1. Install the front lower arm bushing stopper.
2. Install the front suspension lower No. 1 arm to the front frame assembly with the 3 bolts and the nut, but do not tighten them yet.
3. Tighten the 3 bolts in numerical order shown in the illustration.

   Torque:

   200 N*m (2,040 kgf*cm, 148 ft.*lbf) (bolt A)

   206 N*m (2,100 kgf*cm, 152 ft.*lbf) (bolt B)

Fig 1: Tightening Front Suspension Lower Arm No.1 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine mounting insulator with the 3 nuts.

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

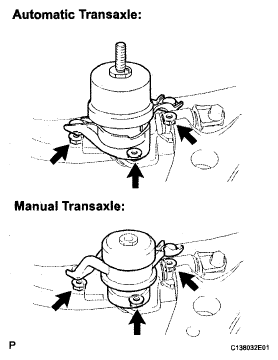

   Fig 2: Identifying Engine Mounting Insulator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the instructions for removal of the engine assembly (See INSTALLATION for 2GR-FE).
