Front Suspension Lower No. 1 Arm (2GR-FE): Components

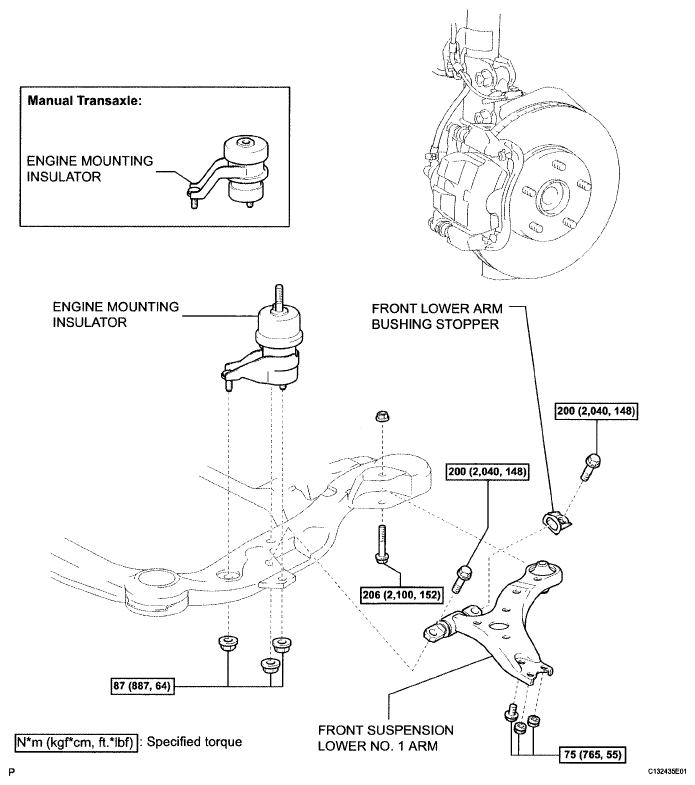

Fig 1: Front Suspension Lower No. 1 Arm Replacement Components With Torque Specifications

G04977706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
