Front Shock Absorber
>>
Components
Front Shock Absorber: Components

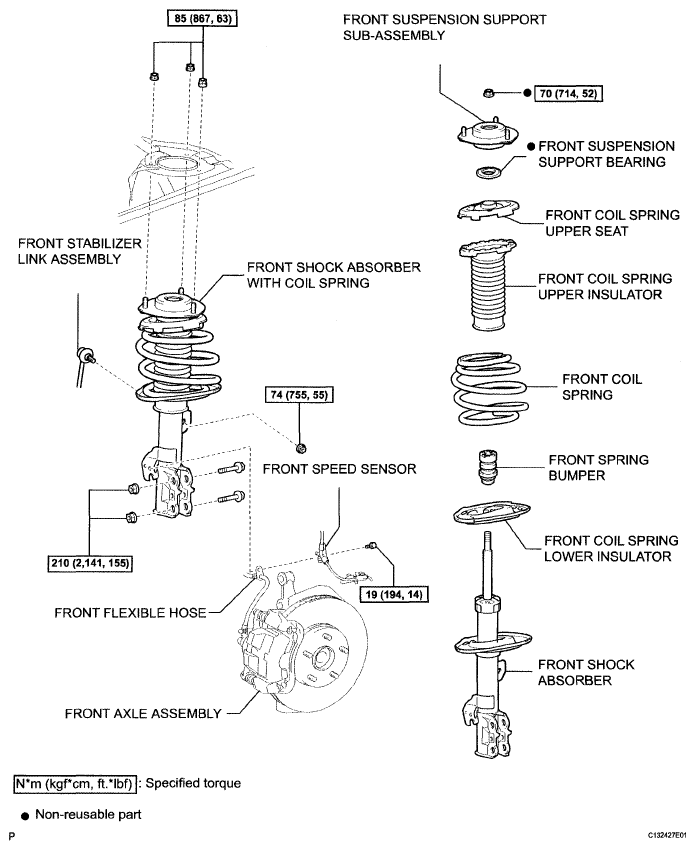

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
