Front Lower Suspension Arm (2AZ-FE): Components: Illustration

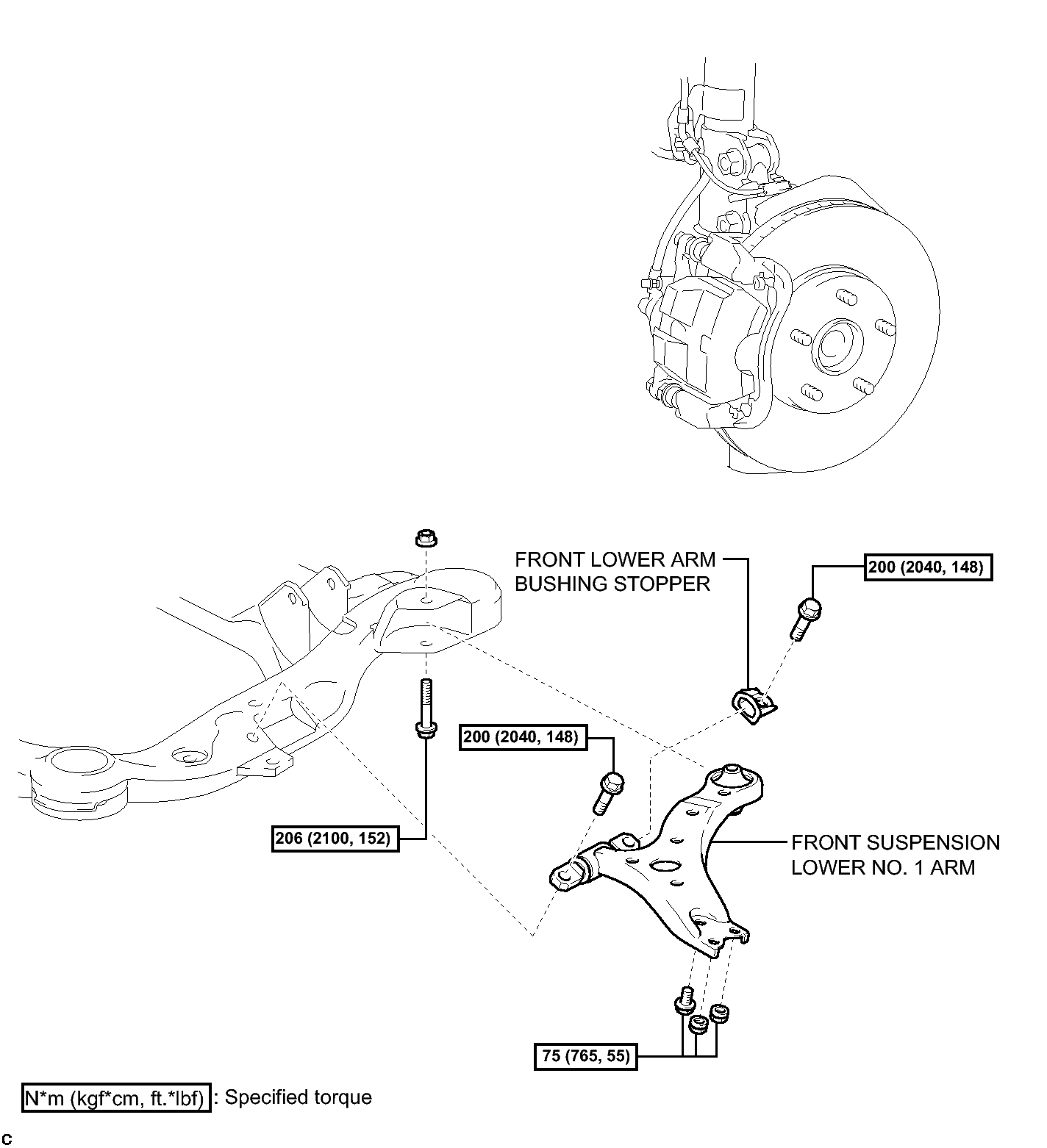

Fig 1: Identifying Front Lower Suspension Arm Replacement Components (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Lower Suspension Arm Replacement Components (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
