Home >> Toyota >> 2009 >> Camry Base, Automatic >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension (Except Hybrid) >> Front Lower Ball Joint >> Components

Front Lower Ball Joint: Components

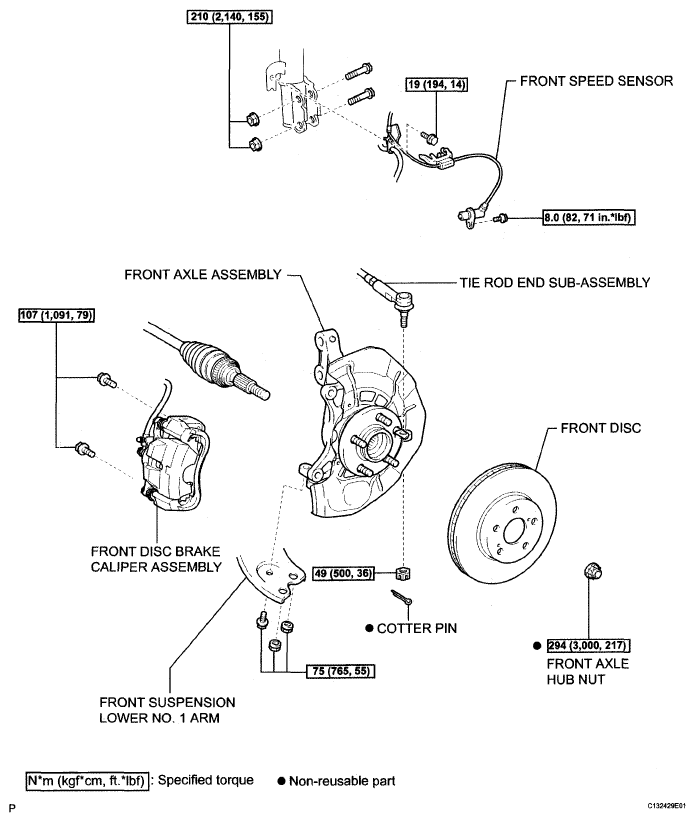

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications (1 Of 2)
G04977711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

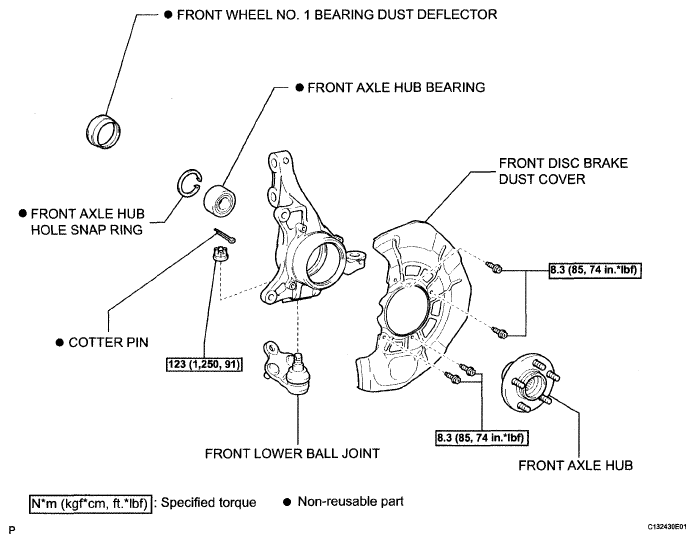

Fig 2: Front Lower Ball Joint Replacement Components With Torque Specifications (2 Of 2)
G04977712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
