VANE PUMP (for 2AZ-FE): Removal

DRAIN POWER STEERING FLUID
REMOVE FRONT WHEEL RH
REMOVE ENGINE UNDER COVER RH
REMOVE FRONT FENDER APRON SEAL RH
REMOVE FAN AND GENERATOR V BELT (See REMOVAL )
DISCONNECT NO. 1 FLUID RESERVOIR TO PUMP HOSE
1. Slide the clip and disconnect the No. 1 fluid reservoir to pump hose from the vane pump assembly.

  Fig 1: Locating Pump Hose Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT PRESSURE FEED TUBE ASSEMBLY
1. Remove the union bolt and disconnect the pressure feed tube assembly from the vane pump assembly.

  Fig 2: Removing Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the gasket from the pressure feed tube assembly.
DISCONNECT POWER STEERING FLUID PRESSURE SWITCH CONNECTOR
1. Disconnect the power steering fluid pressure switch connector.

  Fig 3: Locating Power Steering Fluid Pressure Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VANE PUMP ASSEMBLY
1. Using SST, loosen the 2 bolts and remove the vane pump assembly.
  SST 09249-63010

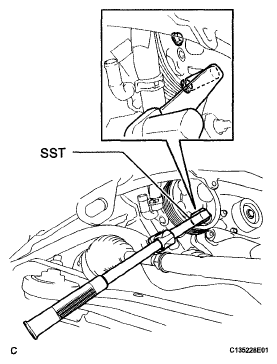

  Fig 4: Loosening Vane Pump Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts from the vane pump assembly.

  Fig 5: Identifying Vane Pump Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
