Spiral Cable: Inspection

  1. INSPECT SPIRAL CABLE
    1. If there are any defects as mentioned below, replace the spiral cable with a new one:

      Scratches, cracks, dents or chips on the connector or the spiral cable.

    2. Inspect the spiral cable.
      1. Measure the resistance according to the value(s) in the table below.
        NOTE: To avoid breakage of the spiral cable, do not turn the spiral cable more than necessary.

        If the value is not within the specified range, replace the spiral cable.

        Standard resistance

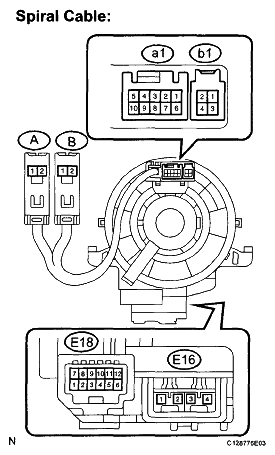

        Fig 1: Inspecting Spiral Cable
        G05561213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TESTER CONNECTION SPECIFIED CONDITION

        Tester connection Condition Specified condition
        a1-1 - E18-8 (HO) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-2 - E18-9 (EAC) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-3 - E18-10 (AC1) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-5 - E18-12 (IL+2) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-6 - E18-2 (ECC) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-7 - E18-3 (+DP) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-8 - E18-4 (EAU) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-9 - E18-5 (AU2) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        a1-10 - E18-6 (AU1) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        b1-3 - E18-1 (CCS) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        b1-4 - E18-2 (ECC) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        A-1 (D-) - E16-2 (D-) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        A-2 (D+) - E16-1 (D+) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        B-1 (D2-) - E16-3 (D2-) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
        B-2 (D2+) - E16-4 (D2+) Center Below 1 Ω
        2.5 rotations to the left
        2.5 rotations to the right
