Position of Parts in Seat

[w/ Power Seat]

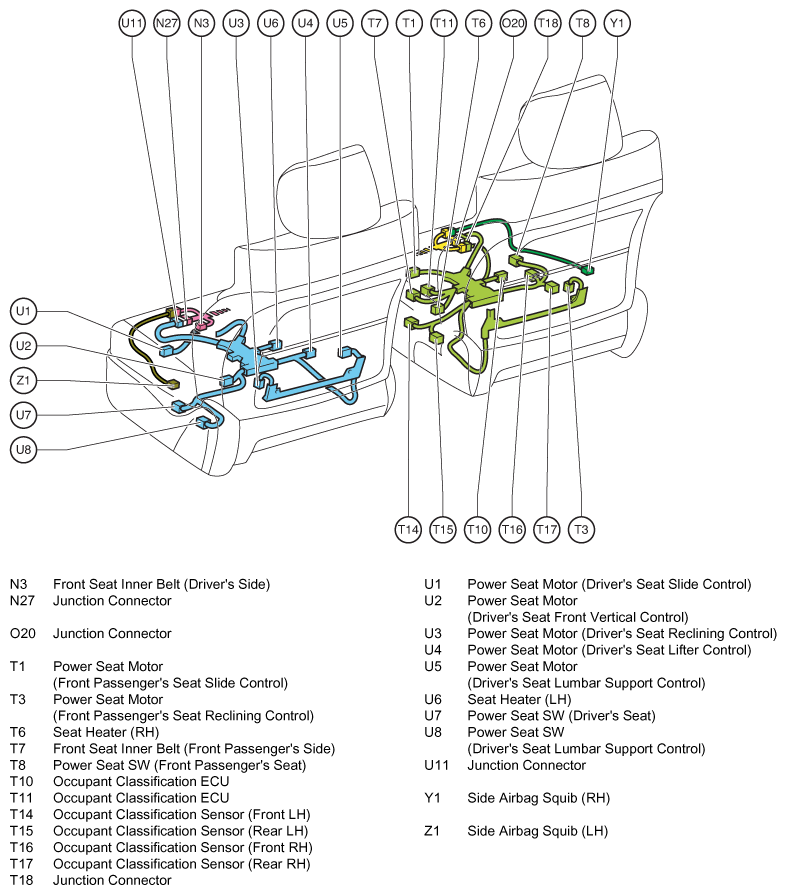

Fig 1: Seat Parts - w/ Power Seat
G07607989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[w/o Power Seat]

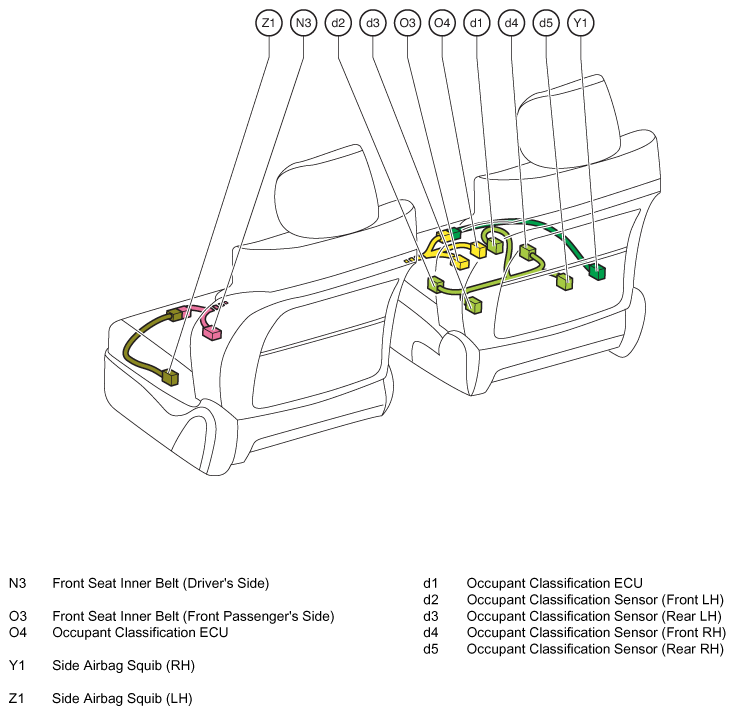

Fig 2: Seat Parts - w/o Power Seat
G07607990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
