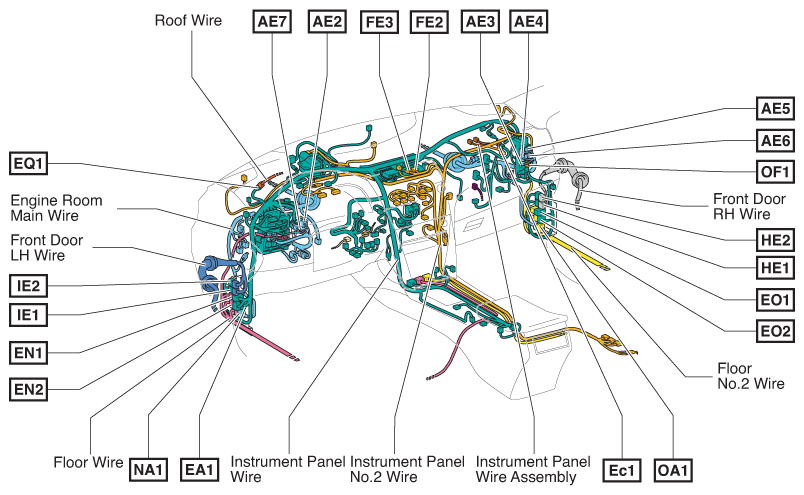

Location of Connector Joining Wire Harness and Wire Harness

Fig 1: Locating Connector Joining Wire Harness And Wire Harness

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

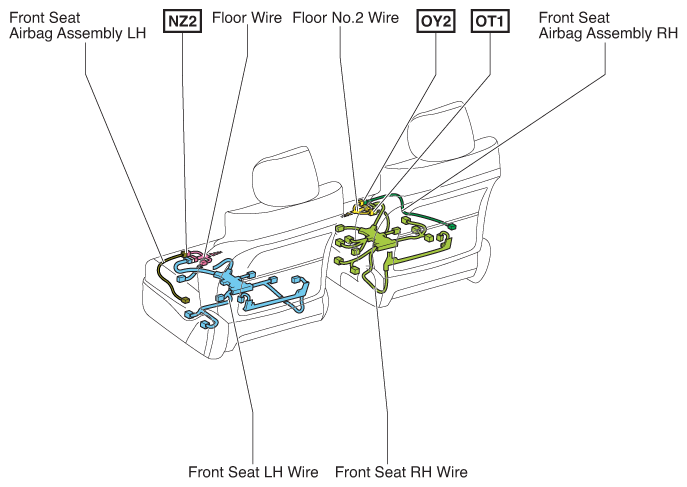

[w/ Power Seat]

Fig 1: Locating Connector Joining Wire Harness And Wire Harness - w/ Power Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

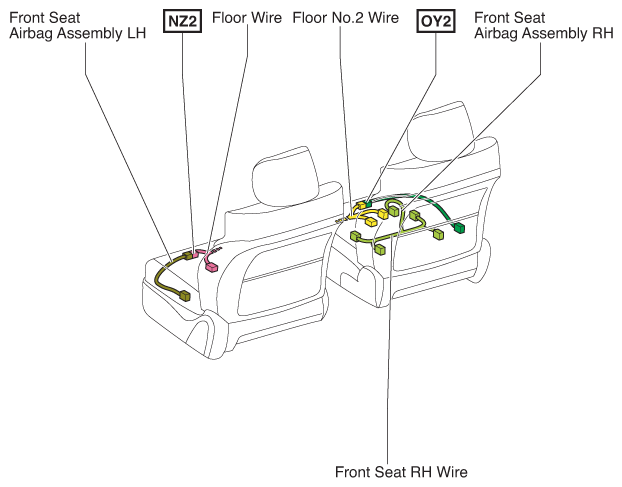

[w/o Power Seat]

Fig 2: Locating Connector Joining Wire Harness And Wire Harness - w/o Power Seat

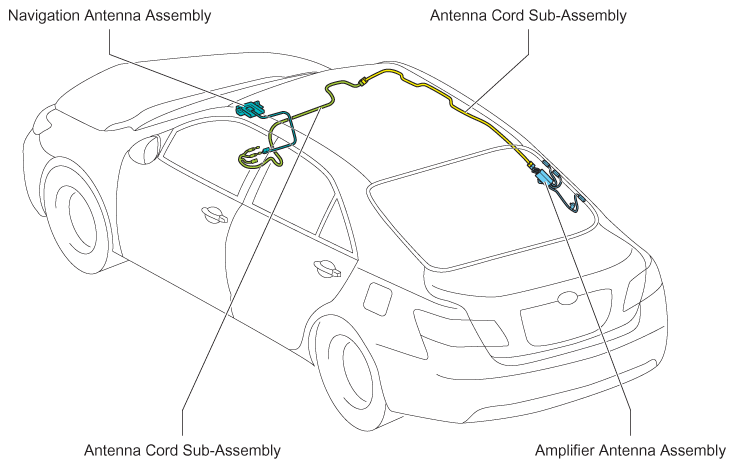

[Antenna]

Fig 3: Locating Wire Harnesses Points - Antenna
