Location of Connector Joining Wire Harness and Wire Harness Location of Ground Points

[2GR-FE]

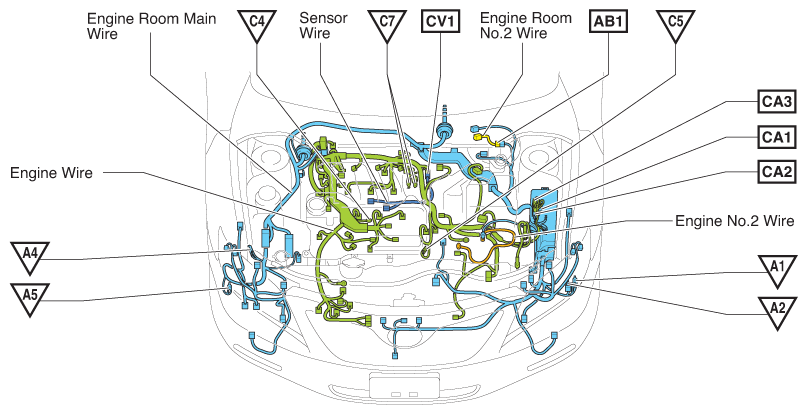

Fig 1: Locating Connector Joining Wire Harness And Wire Harness And Ground Points (2GR-FE)
G07607991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

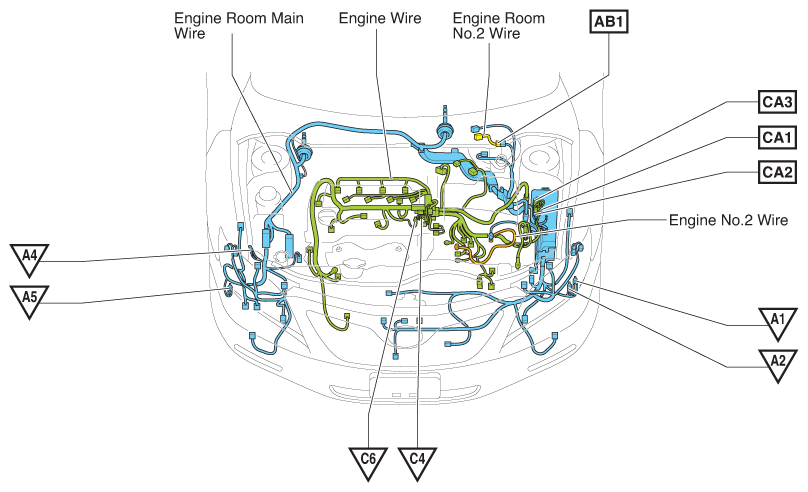

Fig 2: Locating Connector Joining Wire Harness And Wire Harness And Ground Points (2AZ-FE)
G07607992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

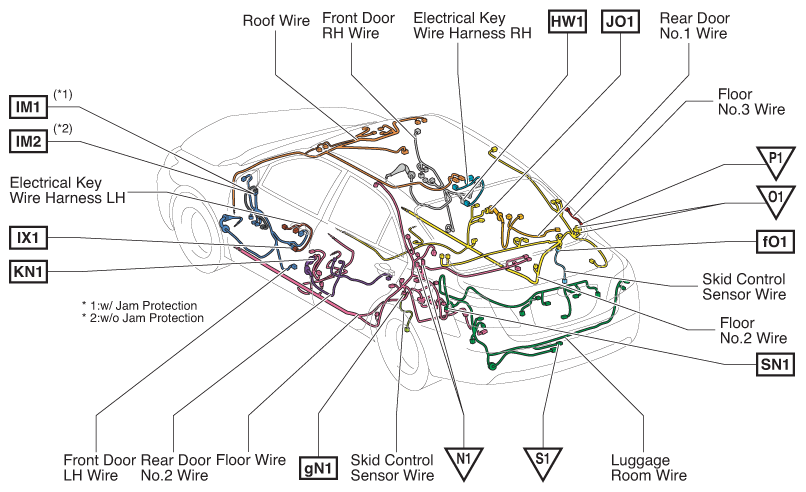

Fig 1: Locating Connector Joining Wire Harness And Wire Harness And Ground Points
G07607995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
