Seat Heater, Wiper and Washer

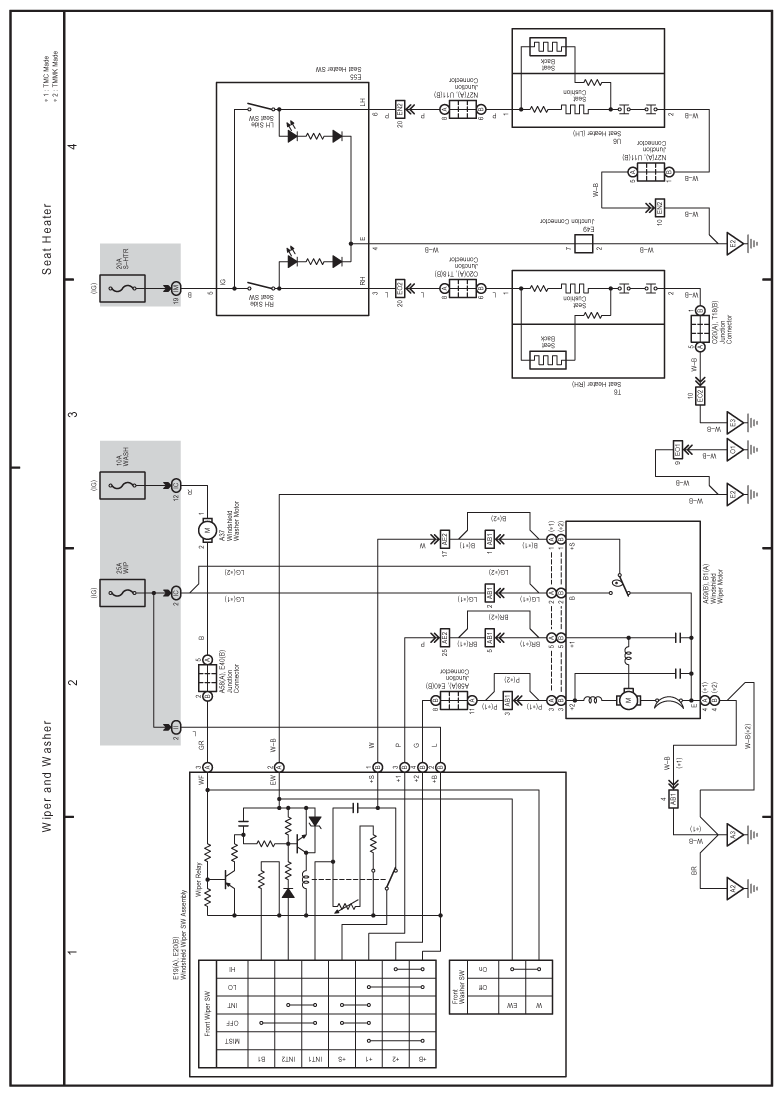

Fig 1: Wiper And Washer And Seat Heater - Electrical Wiring Diagram

G07608298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
