Overall Electrical Wiring Diagram: SRS

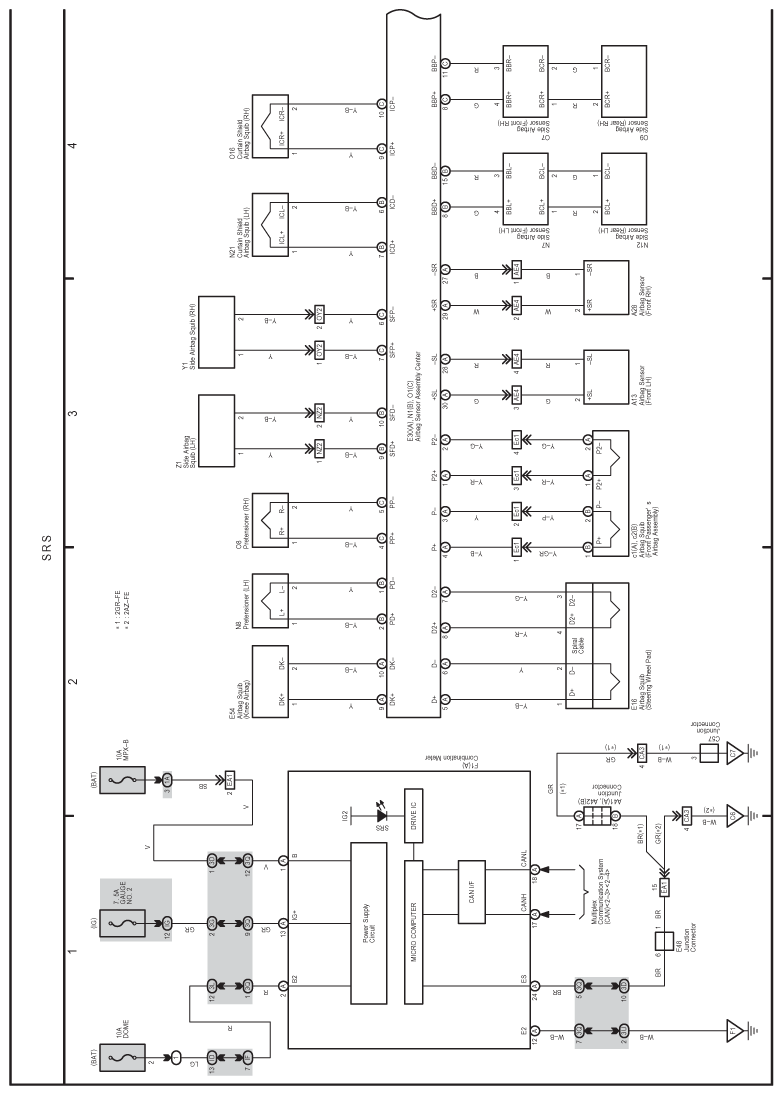

Fig 1: SRS - Electrical Wiring Diagram (1 Of 2)
G07608293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

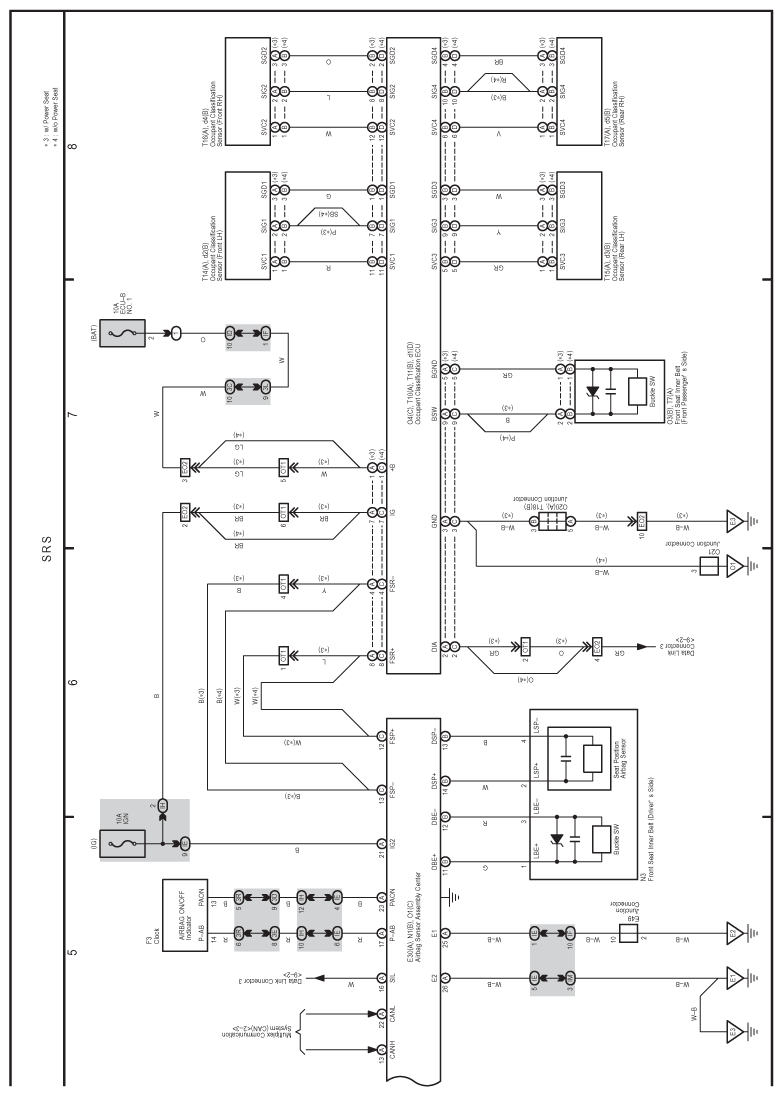

Fig 2: SRS - Electrical Wiring Diagram (2 Of 2)
G07608294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
