Power Source

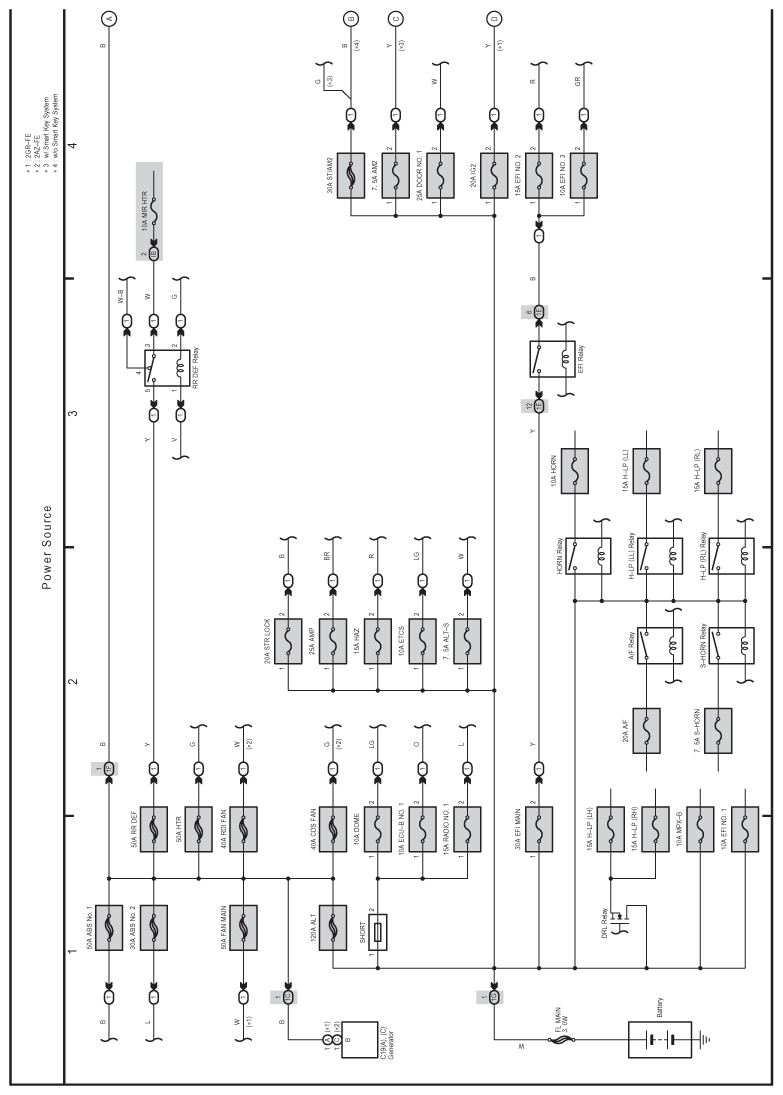

Fig 1: Power Source - Electrical Wiring Diagram (1 Of 2)
G07608251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

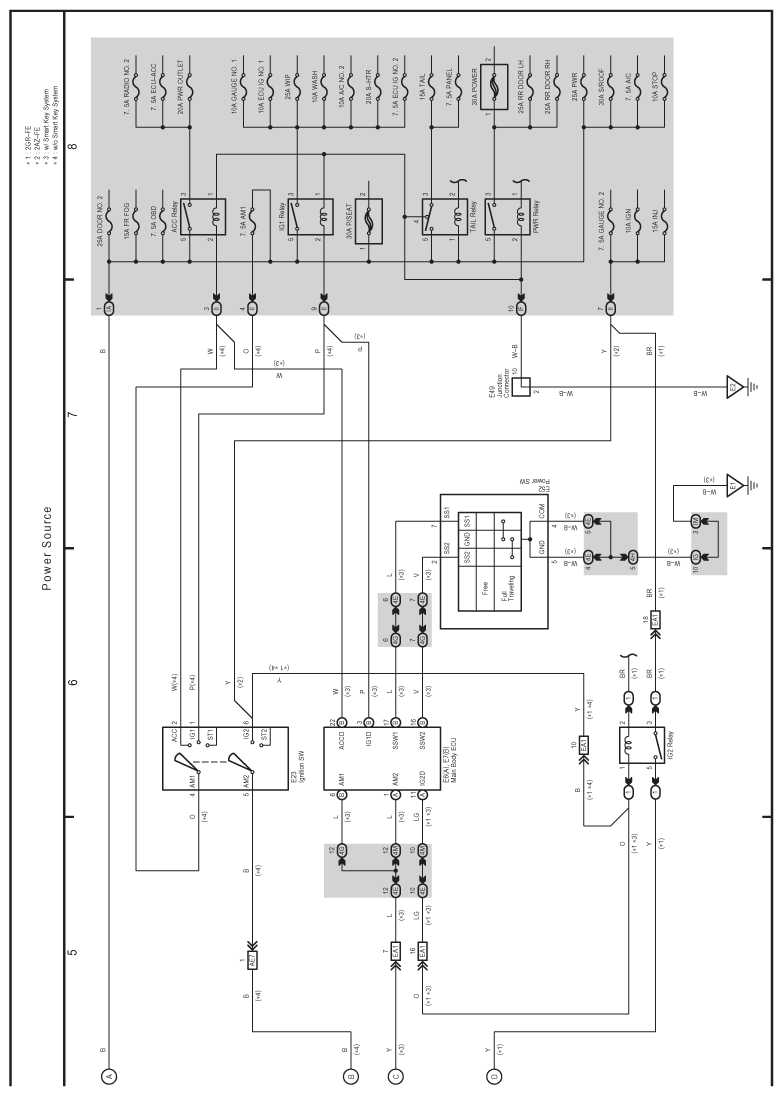

Fig 2: Power Source - Electrical Wiring Diagram (2 Of 2)
G07608252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
