Mirror Heater, Rear Window Defogger, Remote Control Mirror

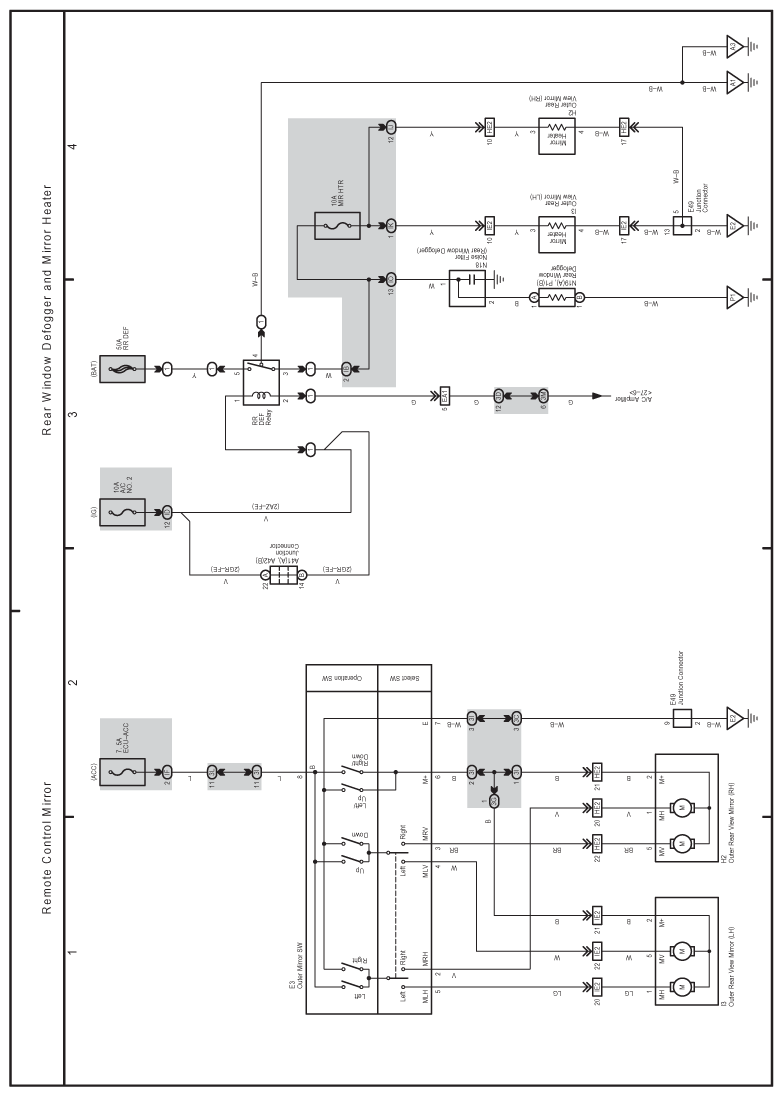

Fig 1: Remote Control Mirror And Rear Window Defogger And Mirror Heater - Electrical Wiring Diagram
G07608297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
