Ignition (2GR-FE)

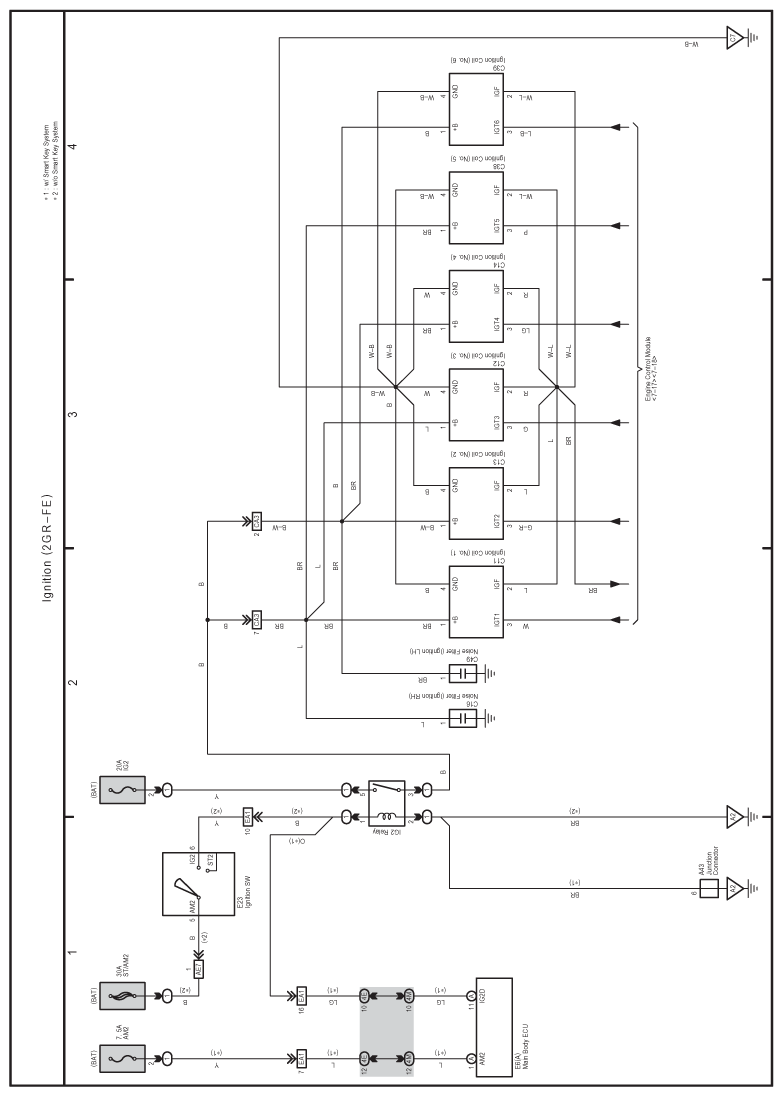

Fig 1: Ignition (2G R-FE) - Electrical Wiring Diagram

G07608271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
