Horn, Power Outlet, Shift Lock

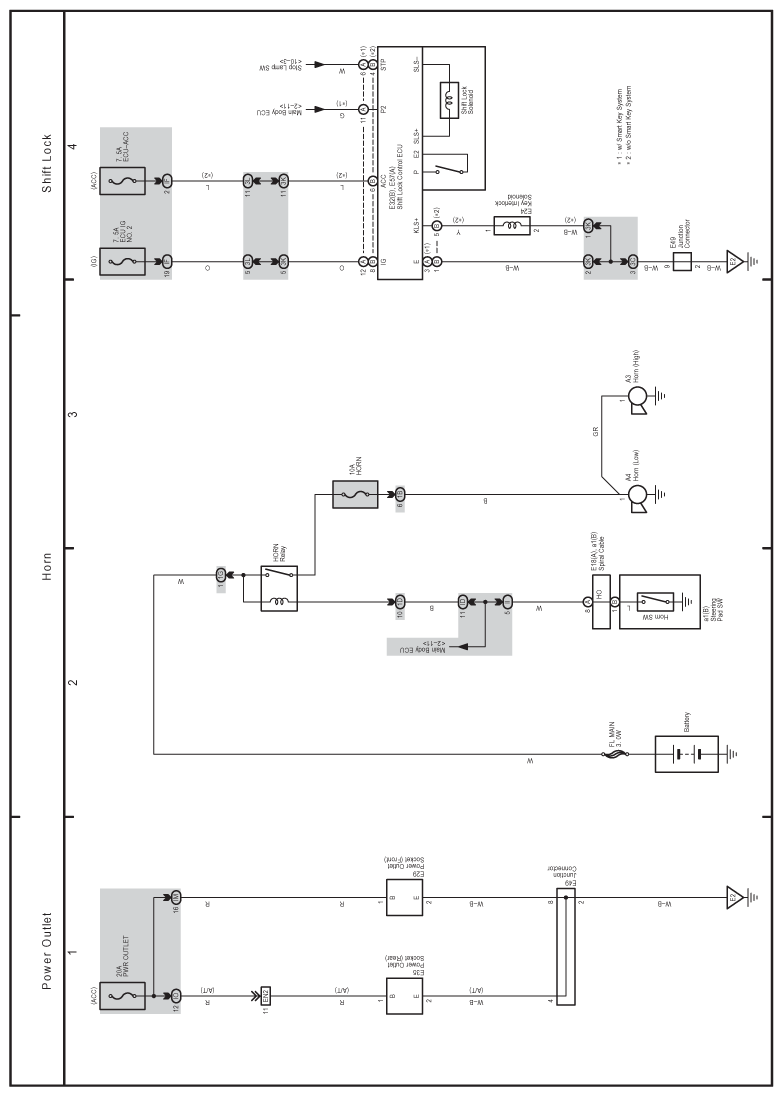

Fig 1: Power Outlet, Horn And Shift Lock - Electrical Wiring Diagram

G07608300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
