Data Link Connector 3, Engine Immobiliser System (w/o Smart Key System)

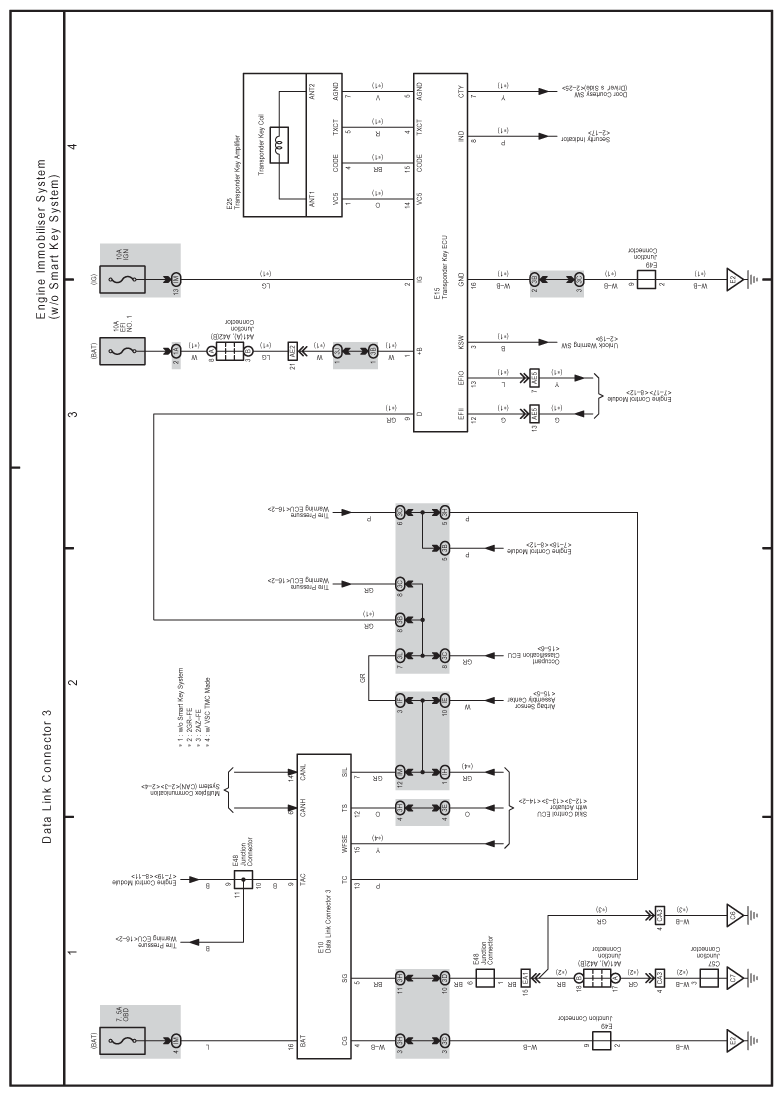

Fig 1: Data Link Connector 3 And Engine Immobiliser System (w/o Smart Key System) - Electrical Wiring Diagram
G07608285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
