Cruise Control (2AZ-FE), Electronically Controlled Transmission and A/T Indicator (2AZ-FE), Engine Control (2AZ-FE)

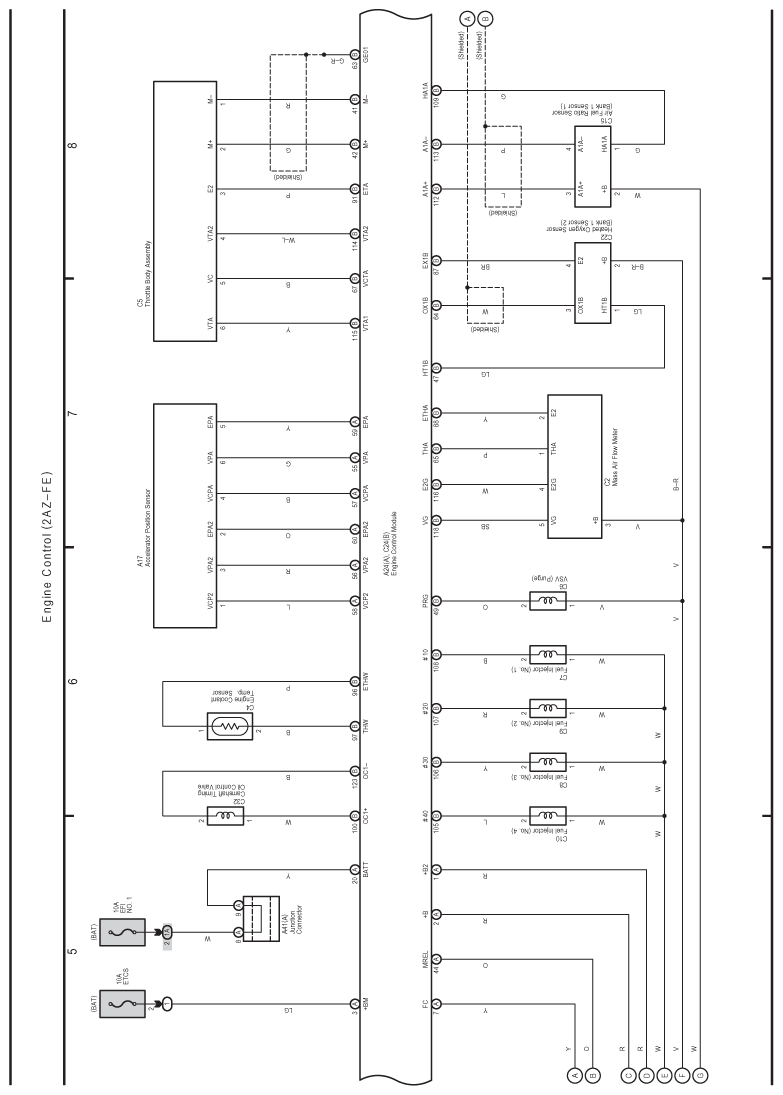

Fig 1: Engine Control (2AZ-FE) - Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

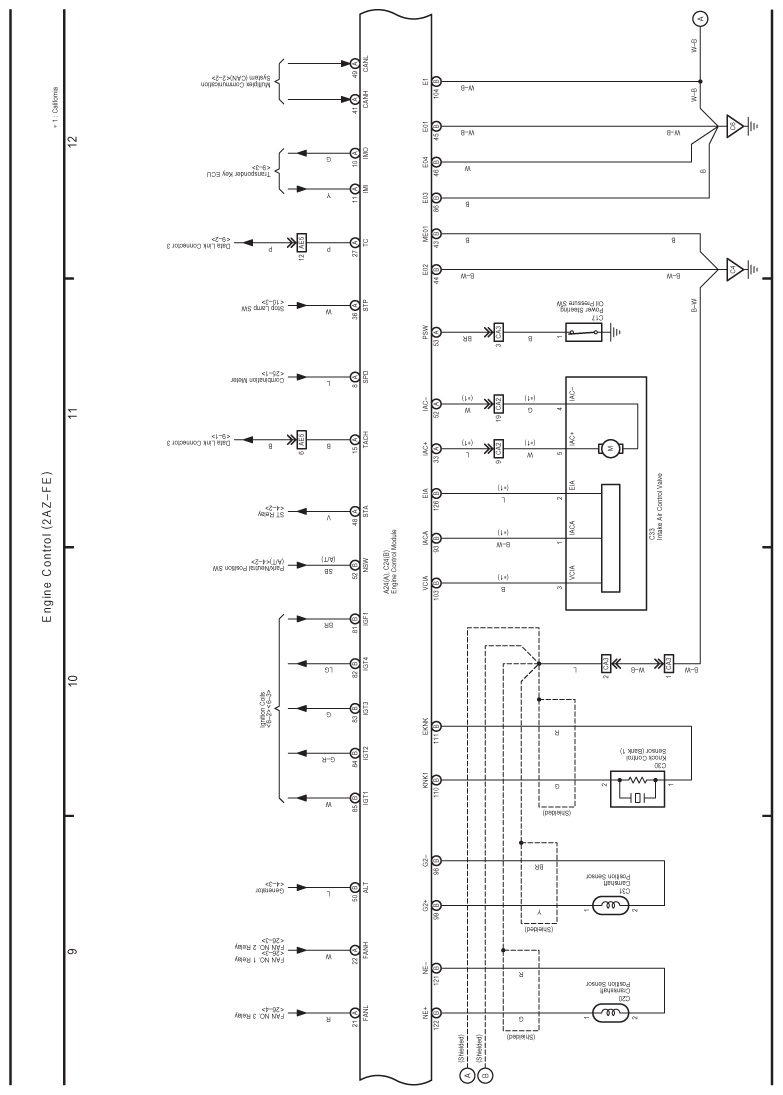

Fig 2: Engine Control (2AZ-FE) - Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control (2AZ-FE) - Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

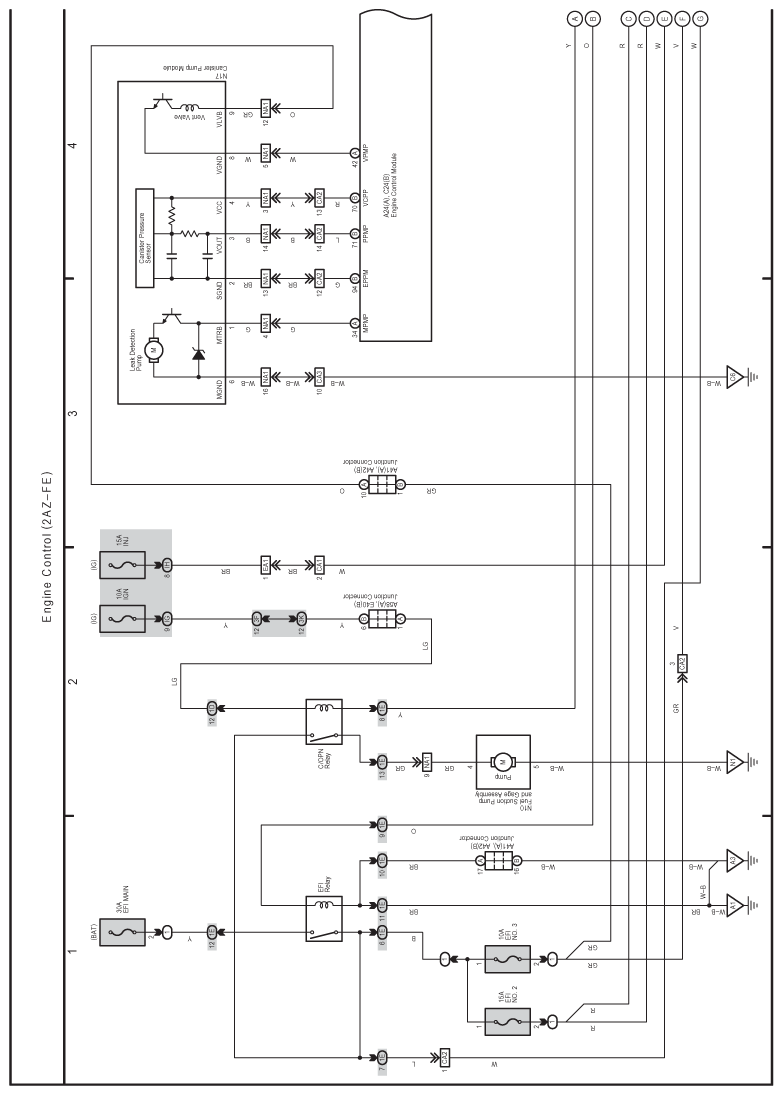

Fig 4: Cruise Control (2AZ-FE) - Electrical Wiring Diagram

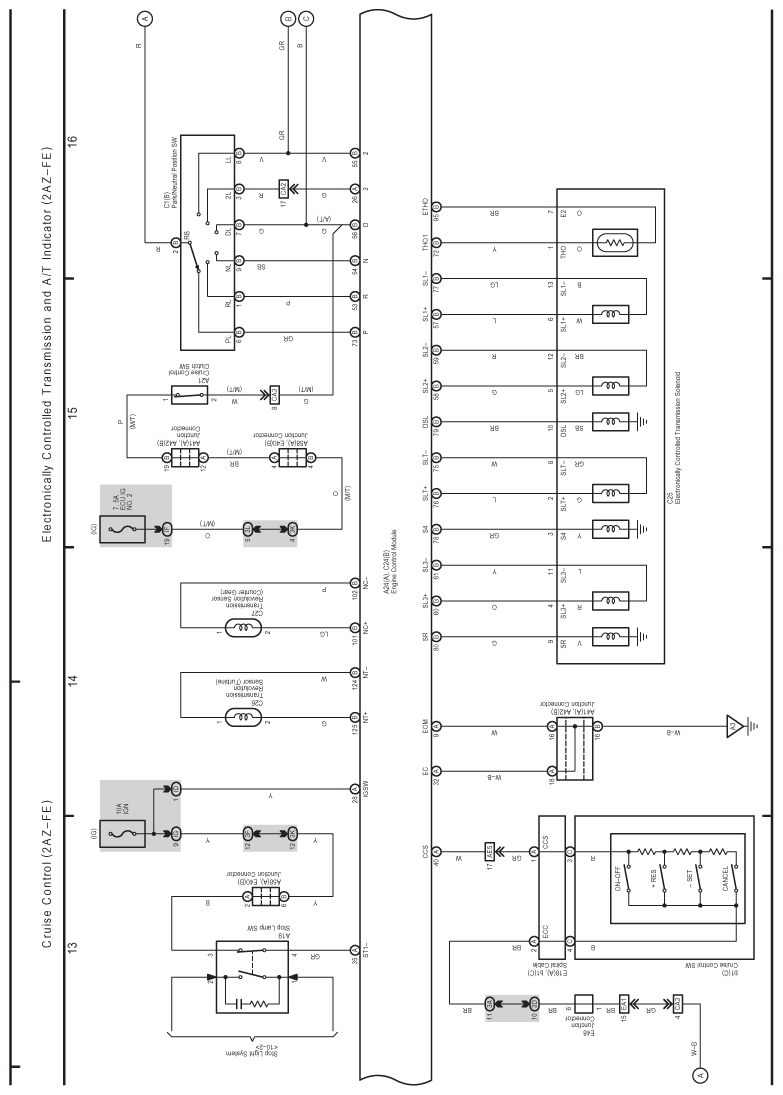

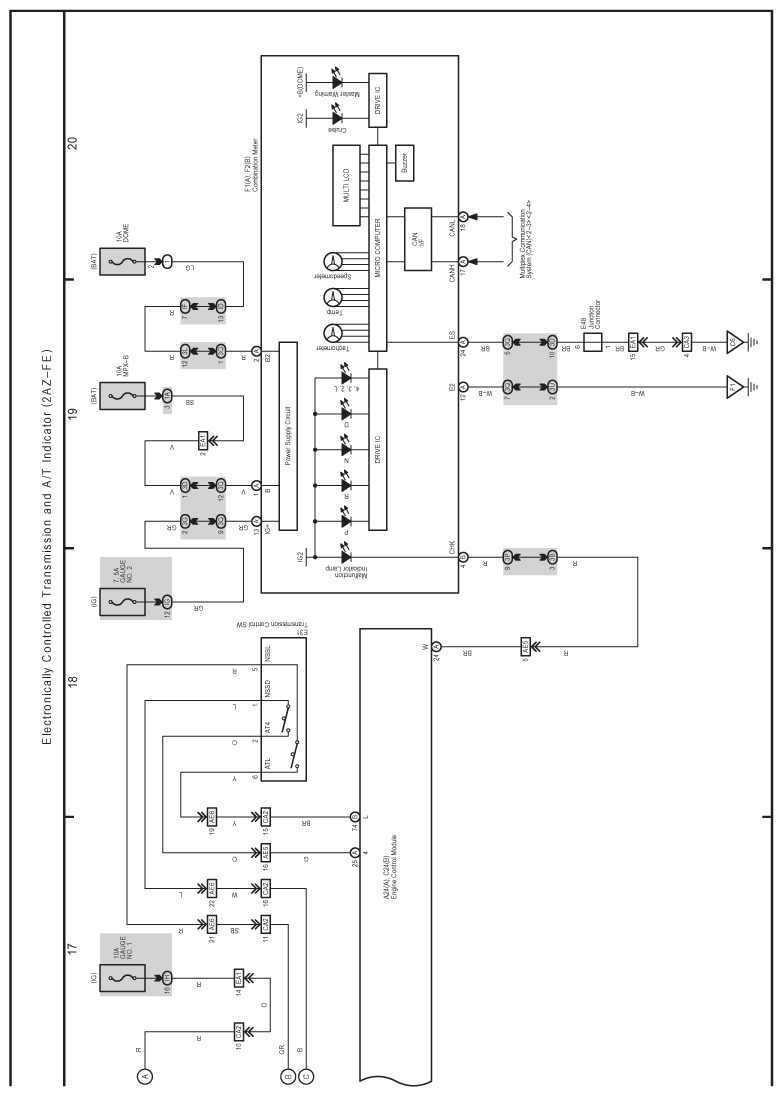

Fig 5: Electronically Controlled Transmission And A/T Indicator (2AZ-FE) - Electrical Wiring Diagram
