OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Cooling Fan (2GR-FE), Radiator Fan and Condenser Fan (2AZ-FE)
Cooling Fan (2GR-FE), Radiator Fan and Condenser Fan (2AZ-FE)

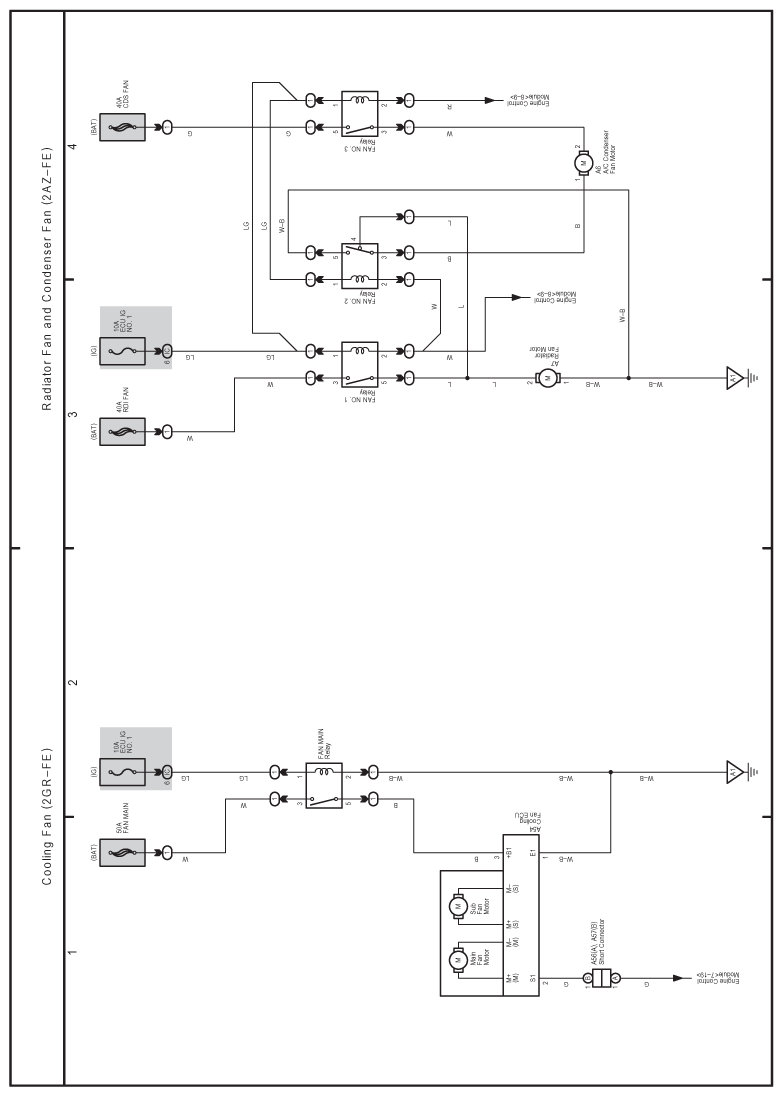

Fig 1: Radiator Fan And Condenser Fan (2AZ-FE) - Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
