Automatic Glare-Resistant EC Mirror, Clock, Sliding Roof

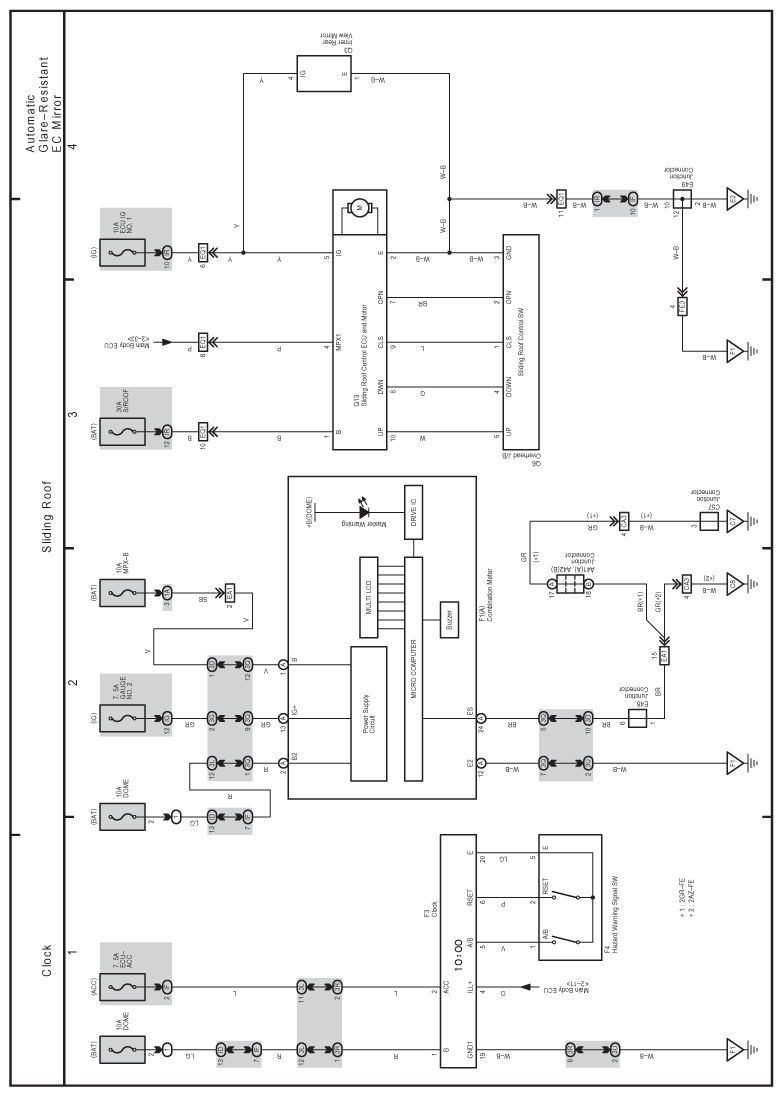

Fig 1: Clock, Sliding Roof And Automatic Glare-Resistant EC Mirror - Electrical Wiring Diagram

G07608296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
