Audio System (8 Speaker w/o Navigation System)

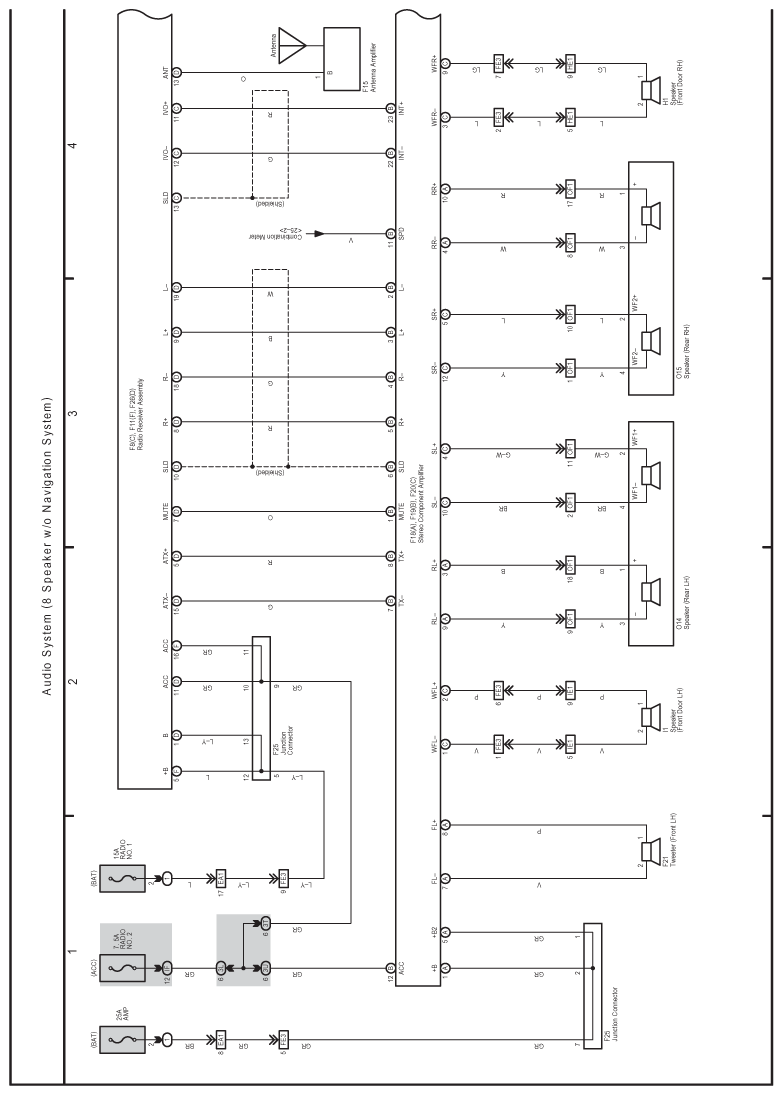

Fig 1: Audio System (8 Speaker w/o Navigation System) - Electrical Wiring Diagram (1 Of 2)
G07608303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

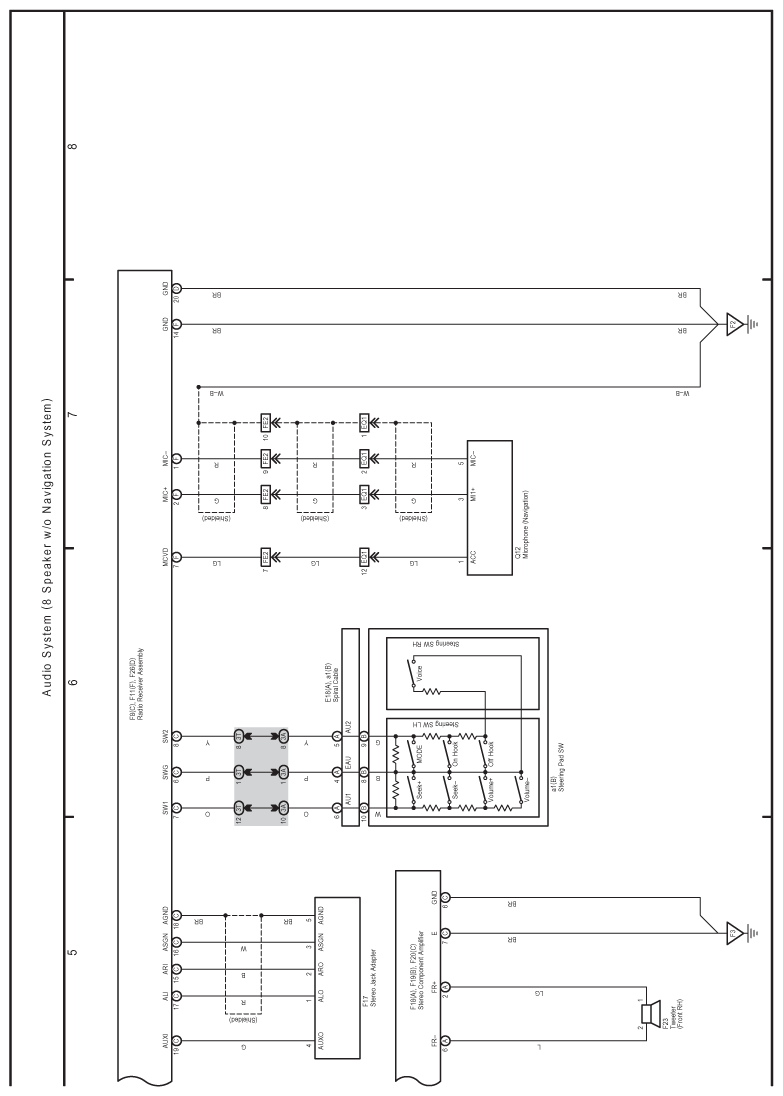

Fig 2: Audio System (8 Speaker w/o Navigation System) - Electrical Wiring Diagram (2 Of 2)
G07608304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
