Air Conditioning

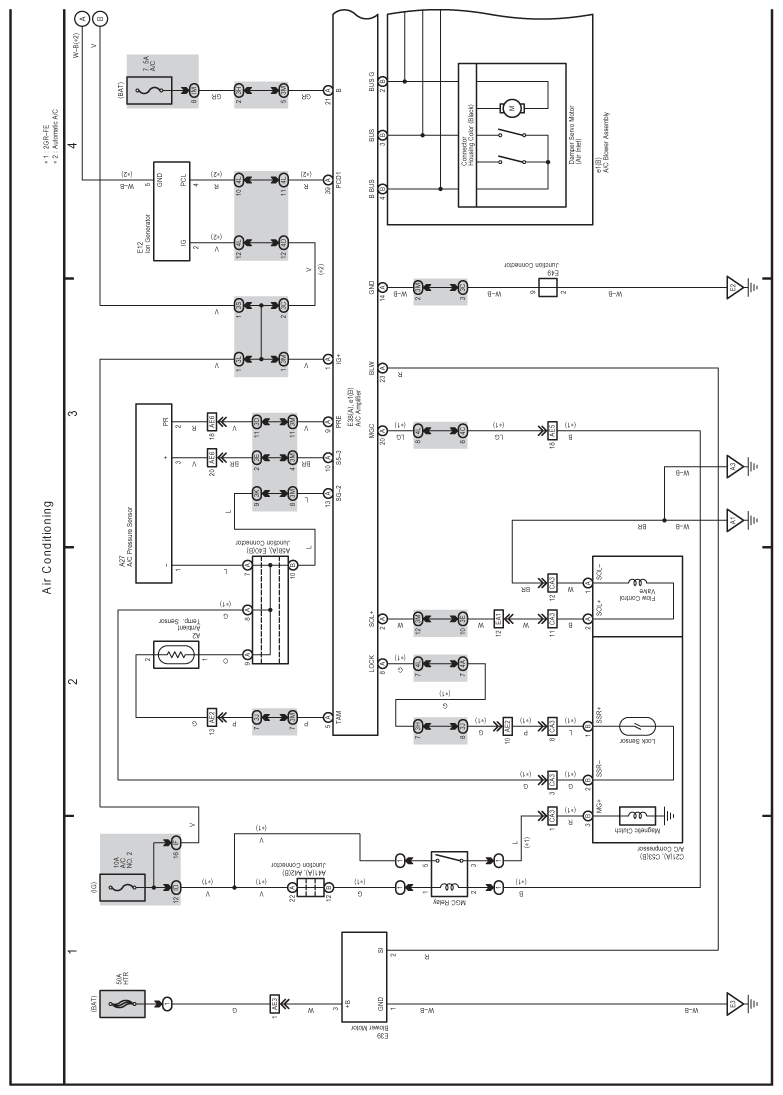

Fig 1: Air Conditioning - Electrical Wiring Diagram (1 Of 2)
G07608309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

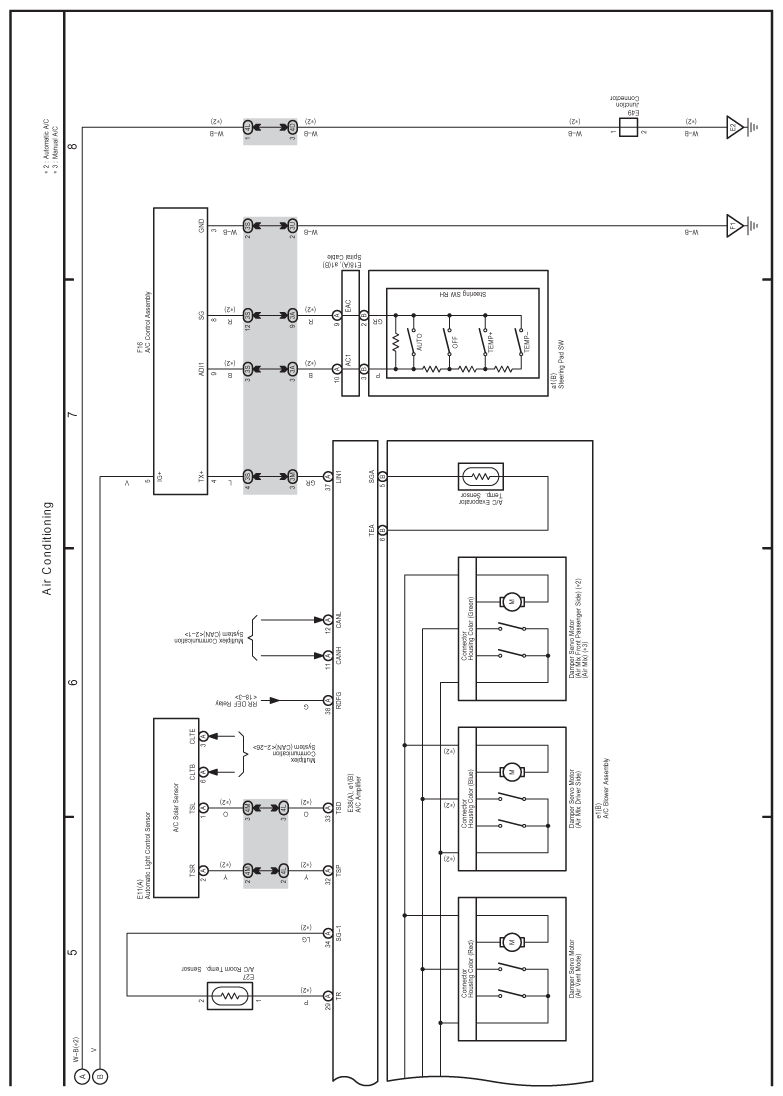

Fig 2: Air Conditioning - Electrical Wiring Diagram (2 Of 2)
G07608310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
