ABS (w/ VSC TMC Made), TRAC (TMC Made), VSC (TMC Made)

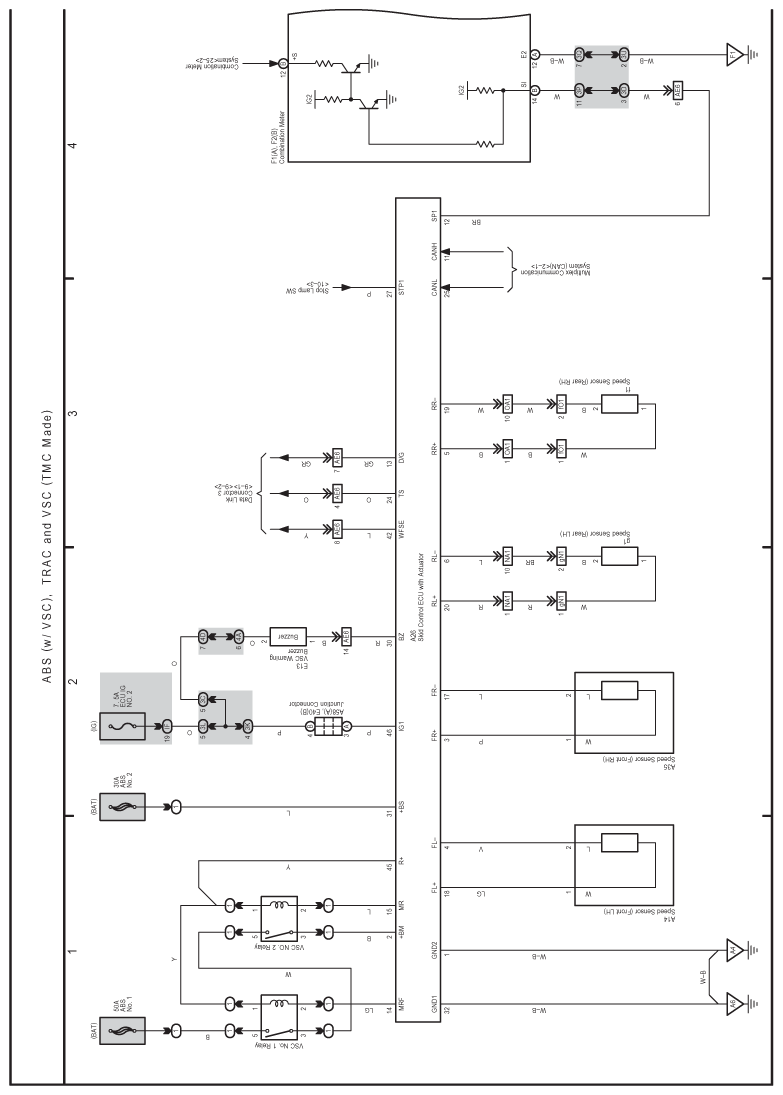

Fig 1: ABS (w/ VSC), TRAC And VSC (TMC Made) - Electrical Wiring Diagram (1 Of 2)
G07608288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

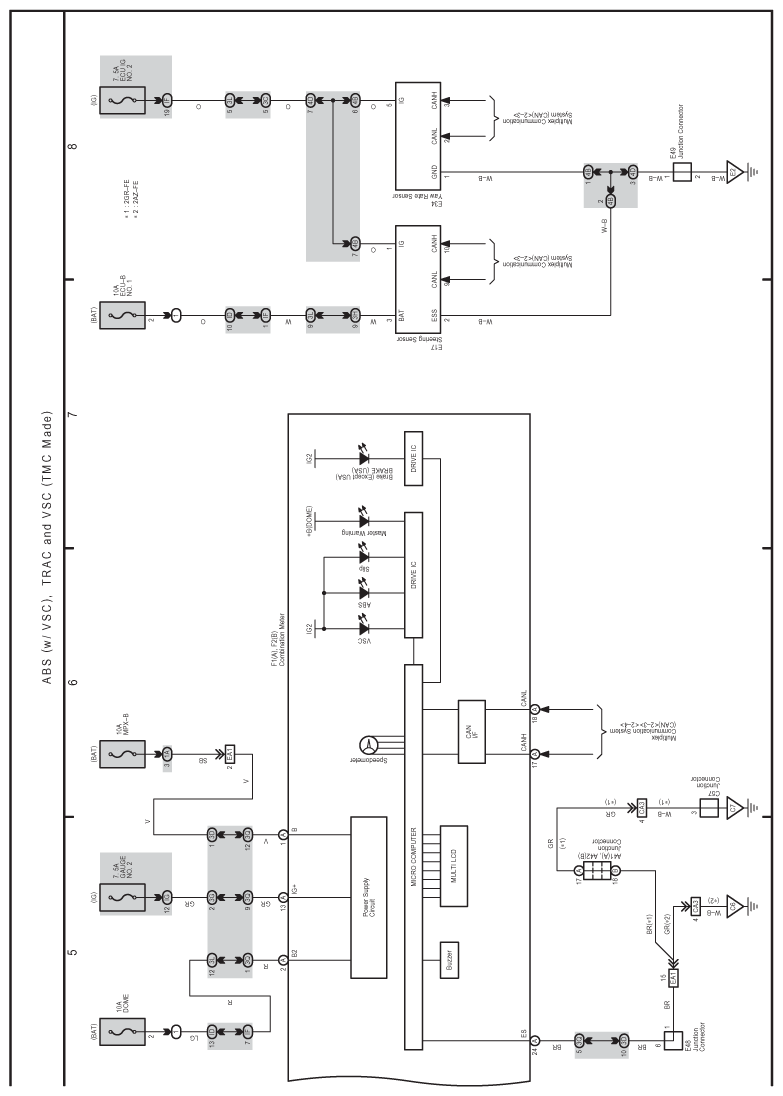

Fig 2: ABS (w/ VSC), TRAC And VSC (TMC Made) - Electrical Wiring Diagram (2 Of 2)
G07608289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
