Front Brake Pad, Brake Caliper & Brake Rotor: Components

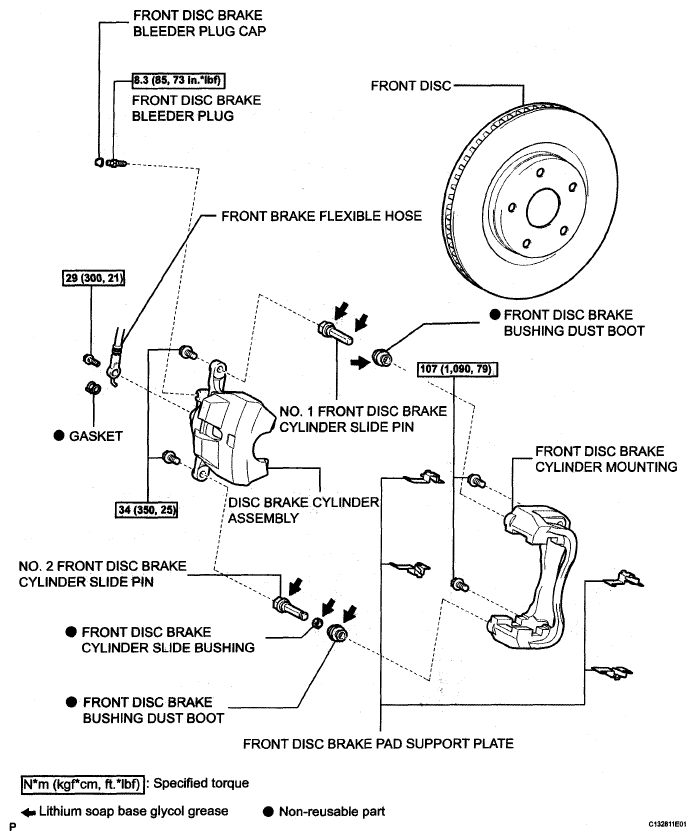

Fig 1: Front Brake Replacement Components With Torque Specifications (1 Of 2)
G04978372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

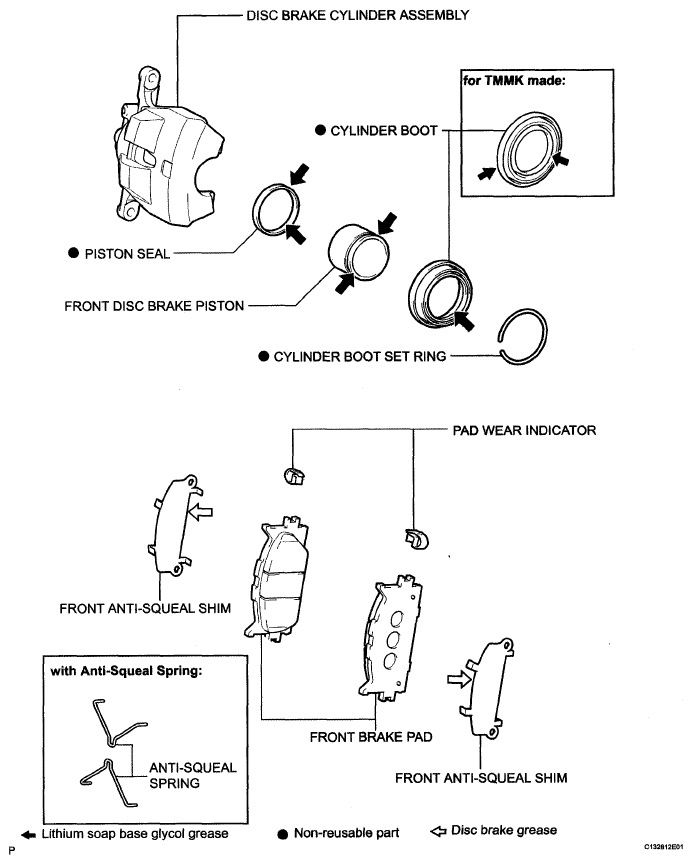

Fig 2: Identifying Front Brake Components (2 Of 2)
G04978373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
