Front Brake Flexible Hose: Components

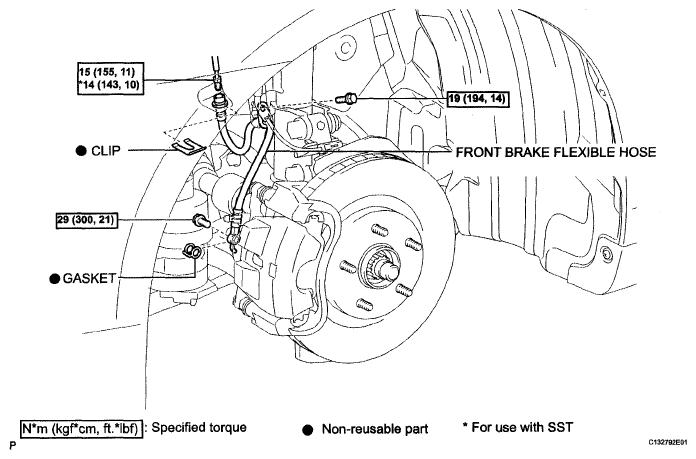

Fig 1: Front Brake Flexible Hose Replacement Components With Torque Specifications

G04978405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
