System Diagram

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.

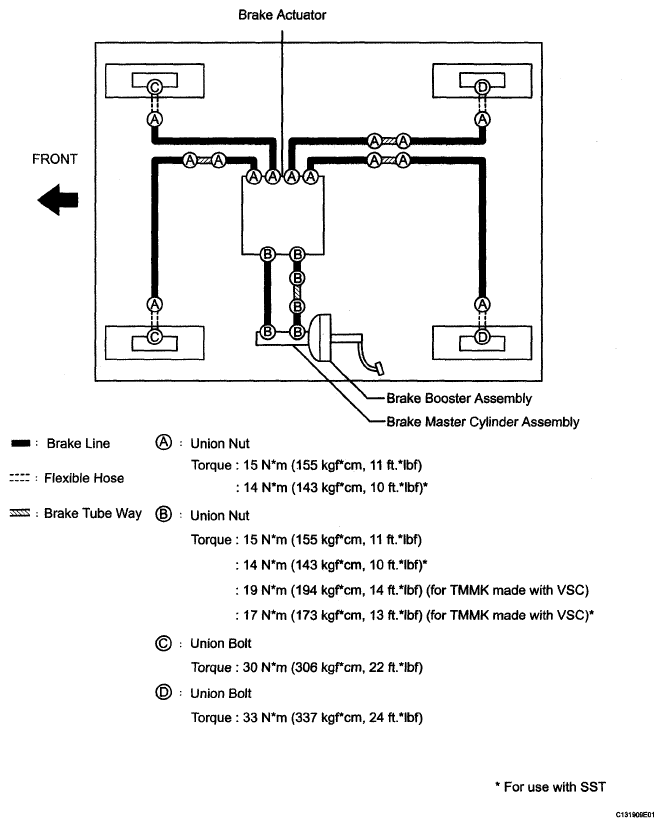

Fig 1: Brake System Diagram
G04978285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
