Brake Pedal: Components

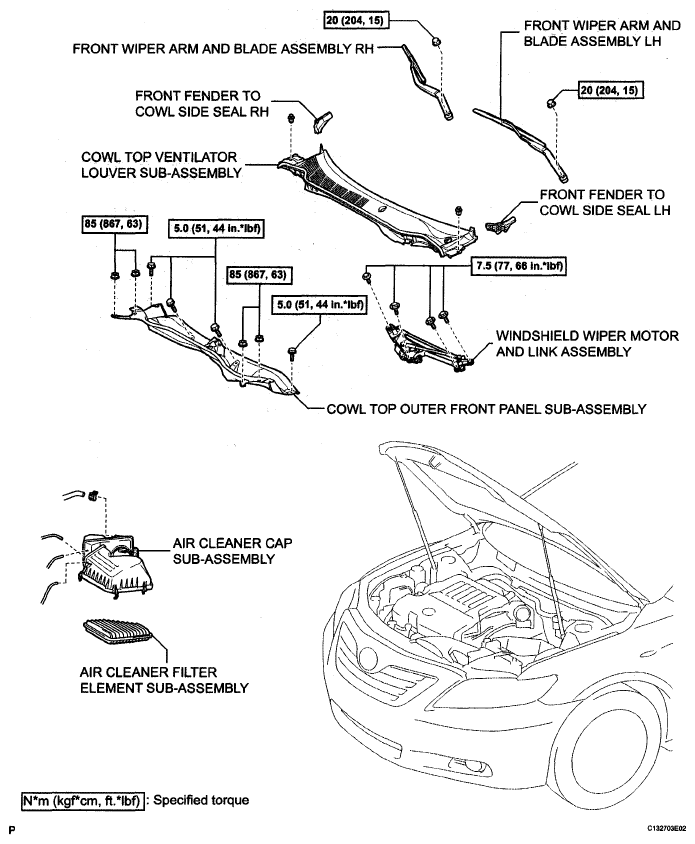

Fig 1: Wiper Assembly Replacement Components With Torque Specifications
G04978303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

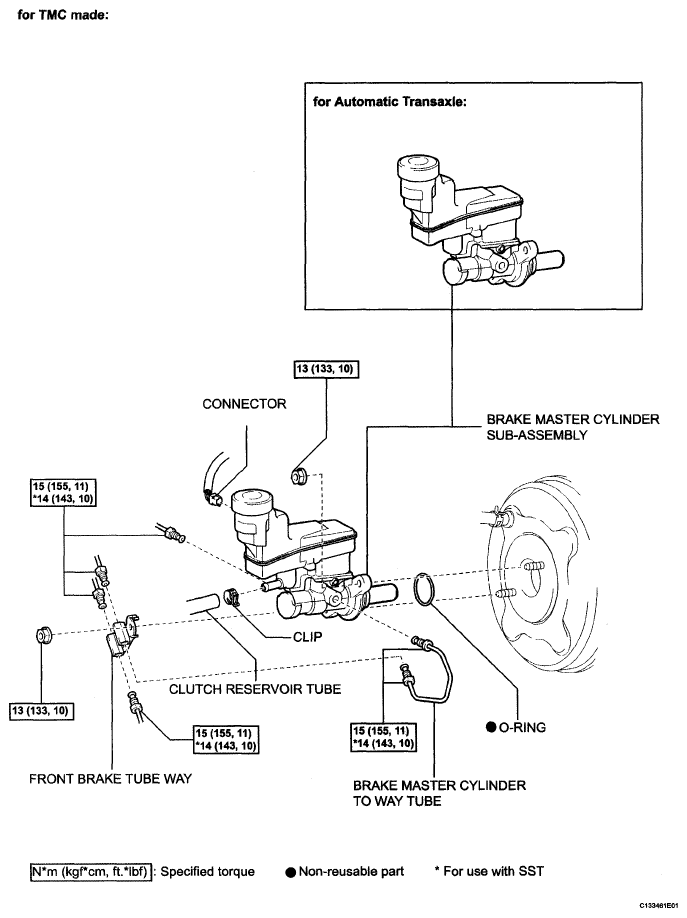

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (TMC Made)
G04978304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

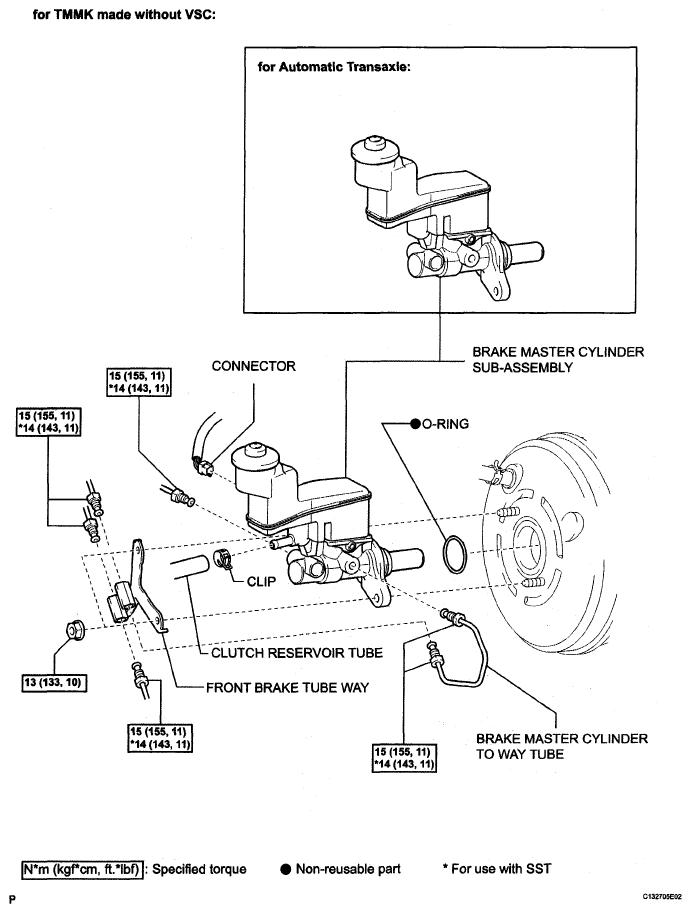

Fig 3: Brake Master Cylinder Replacement Components With Torque Specifications (TMMK Made Without VSC)
G04978305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

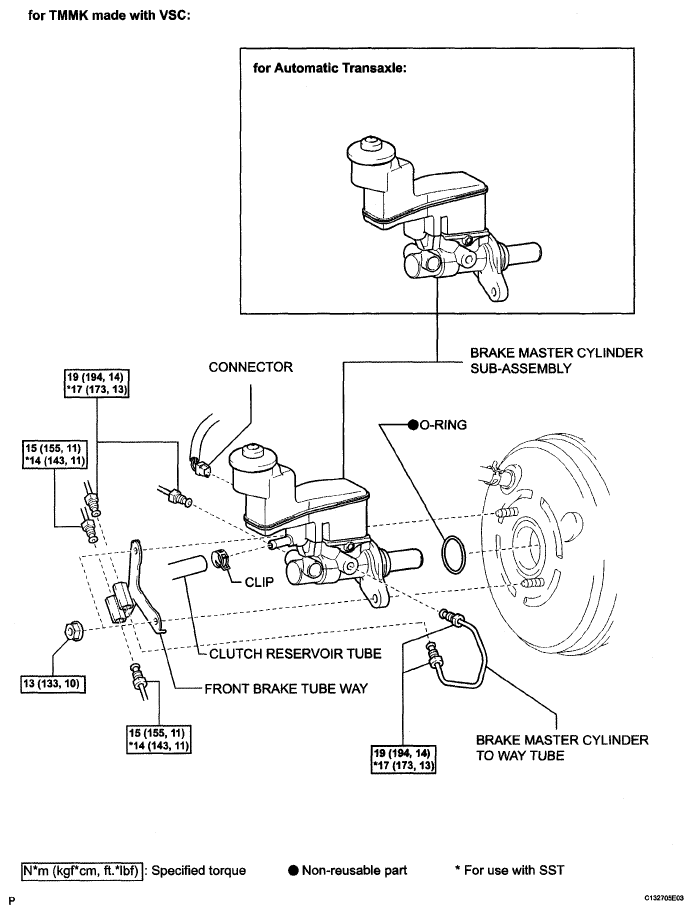

Fig 4: Brake Master Cylinder Replacement Components With Torque Specifications (TMMK Made With VSC)
G04978306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

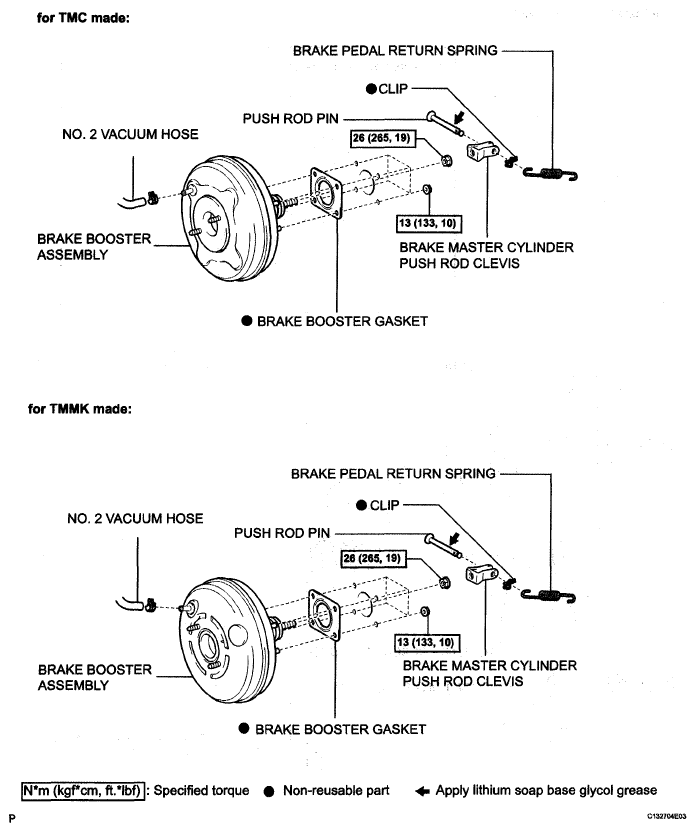

Fig 5: Brake Booster Replacement Components With Torque Specifications (TMC Made)
G04978307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

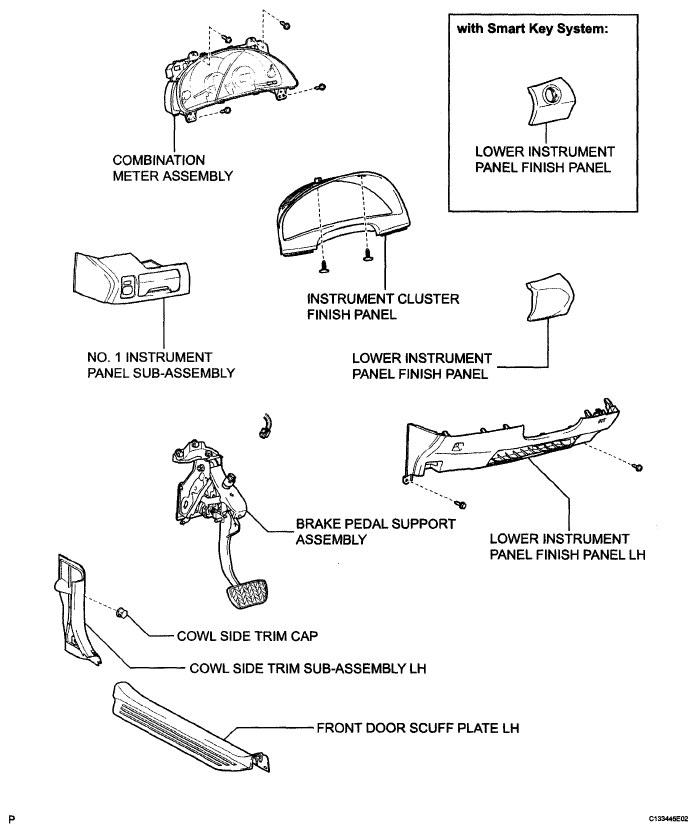

Fig 6: Identifying Brake Pedal Components
G04978308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

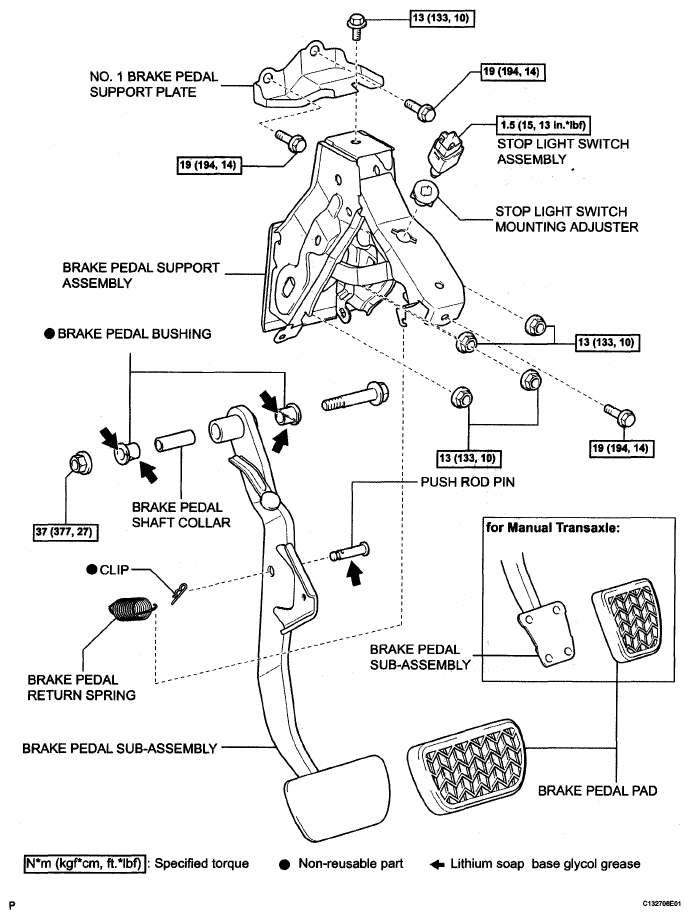

Fig 7: Brake Pedal Replacement Components With Torque Specifications
G04978309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
