Brake Pedal: Adjustment

1. Inspect the brake pedal height.

   Pedal height from dash panel

   PEDAL HEIGHT FROM DASH PANEL



   Transaxle	Specified condition
   Automatic	129.9 to 139.9 mm (5.114 to 5.508 In.)
   Manual	131.9 to 141.9 mm (5.193 to 5.587 In.)

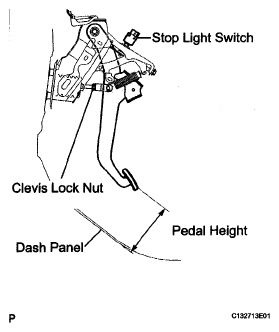

   Fig 1: Inspecting And Adjusting Pedal Height

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the brake pedal height.
   1. Disconnect the connector from the stop light switch assembly.
   2. Remove the stop light switch.
   3. Loosen the push rod clevis lock nut.
   4. Adjust the pedal height by turning the push rod.
   5. Tighten the clevis lock nut.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

   6. Insert the switch into the adjuster until the switch body touches the pedal.
      NOTE: Do not depress the pedal.
      Fig 2: Inserting Switch Into Adjuster

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Rotate the switch a quarter turn clockwise.

      Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf) or less

      NOTE: Do not depress the pedal.
   8. Connect the connector.
   9. Check the switch clearance.

      Standard stop light switch clearance:

      1.5 to 2.5 mm (0.059 to 0.098 in.)

      Fig 3: Checking Switch Clearance

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Stop the engine. Press the pedal several times until no vacuum is left in the booster. Release the pedal.
2. Depress the pedal until a slight resistance is felt. Measure the distance as shown in the illustration.

   Pedal free play: 1.0 to 6.0 mm (0.039 to 0.236 in.)

   If the pedal free play is not as specified, check the switch clearance in the next step. If the pedal free play is as specified, proceed to the "INSPECT PEDAL RESERVE DISTANCE" procedure.

3. Check the switch clearance.

   Standard stop light clearance: 1.5 to 2.5 mm (0.059 to 0.098 in.)

   If the clearance is not as specified, reinstall the switch and recheck the pedal free play. If the clearance is as specified, troubleshoot the brake system and proceed to the "INSPECT PEDAL RESERVE DISTANCE" procedure.

   Fig 4: Inspecting Pedal Free Play

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Release the parking brake pedal or parking brake lever.
2. With the engine running, depress the brake pedal and measure the pedal reserve distance as shown in the illustration.

   Pedal reserve distance from the dash panel at 500 N (51 kgf, 112 lbf)

   Fig 5: Inspecting Pedal Reserve Distance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the distance is not as specified, troubleshoot the brake system.
