On-Vehicle Inspection

INSPECT REAR DOOR PANEL SUB-ASSEMBLY

Check that the clearance measurements of areas A through L are within each standard range.

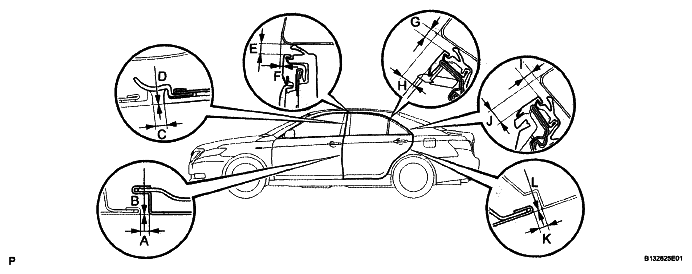

Fig 1: Identifying Clearance Measurements Areas A Through L
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard clearance

REAR DOOR PANEL SUB-ASSEMBLY

Area	Measurement	Area	Measurement
A	2.7 to 5.7 mm (0.106 to 0.224 In.)	G	3.3 to 6.3 mm (0.130 to 0.248 In.)
B	-1.5 to 1.5 mm (-0.059 to 0.059 In.)	H	0 to 3.0 mm (0 to 0.118 In.)
C	2.3 to 6.3 mm (0.091 to 0.248 In.)	I	3.3 to 6.3 mm (0.139 to 0.248 In.)
D	-2.0 to 2.0 mm (-0.079 to 0.079 In.)	J	5.7 to 8.7 mm (0.224 to 0.343 In.)
E	3.3 to 6.3 mm (0.130 to 0.248 In.)	K	2.7 to 5.7 mm (0.106 to 0.224 In.)
F	-0.3 to 2.7 mm (0.012 to 0.106 In.)	L	-1.5 to 1.5 mm (-0.059 to 0.059 In.)
