Rear Door: Components

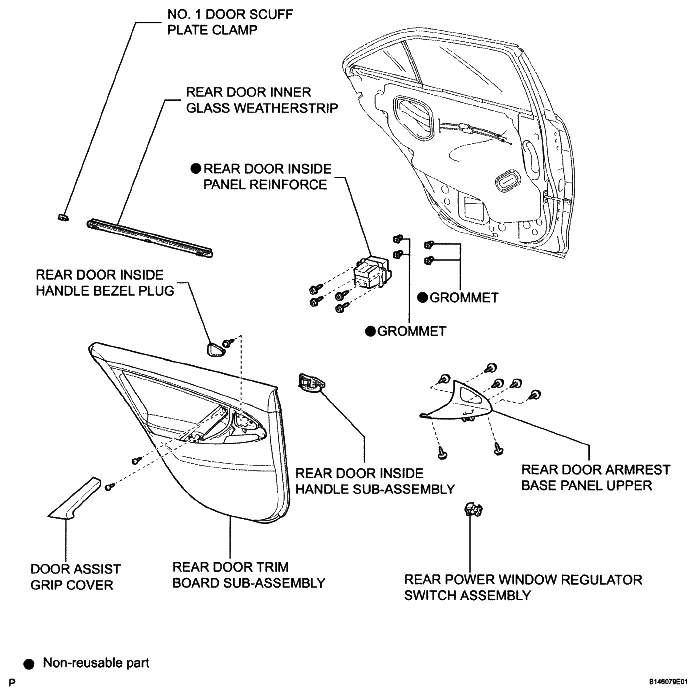

Fig 1: Identifying Rear Door Components (1 Of 3)
G04981742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

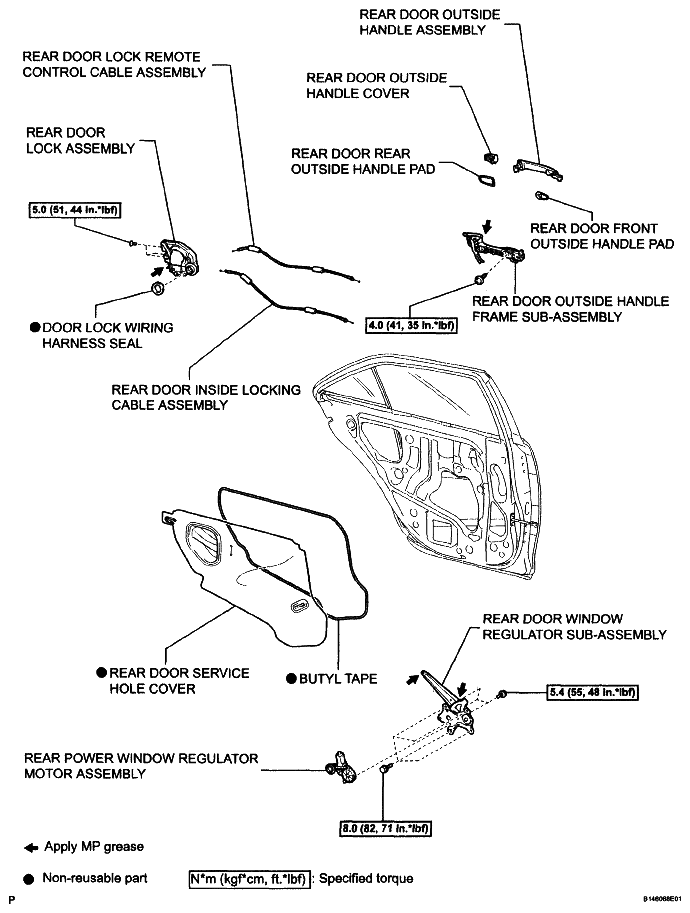

Fig 2: Rear Door Replacement Components With Torque Specifications (2 Of 3)
G04981743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

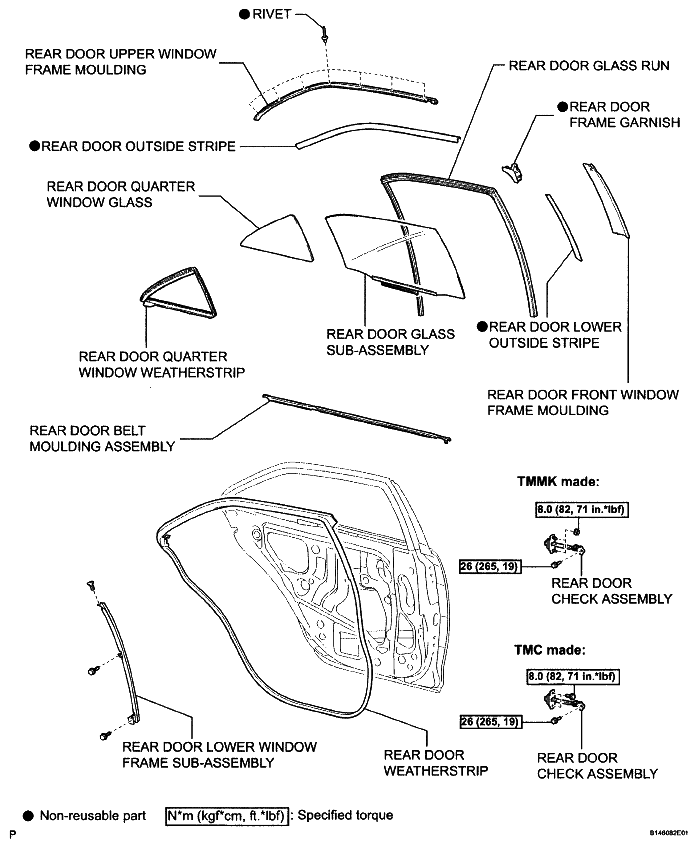

Fig 3: Rear Door Replacement Components With Torque Specifications (3 Of 3)
G04981744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
